Full Automatic High Temperature Spices Retort Sterilization Autoclave Machine

Product Description

Product Description
1. Using a combination of vacuum pump and refrigeration unit, multiple vacuums,quickly reach a high vacuum state of more than 30mba in the pot. After passing hot and humid steam, achieved instant sterilization.
2. The hot and humid steam is directly sprayed on the surface of the material,quickly heat spreads,uniform heating and high efficiency sterilization.
3. When completed the sterilization, steam is introduced into the inner wall of the pot,does not directly contact the materials,so achieve the drying effect.
EQUIPMENT CHARACTERISTICS Steam air retort directly heats food packaging with steam entering the kettle, without any other heating medium (such as spray system water as the intermediate medium). Due to the strong fan forcing the steam inside the pot to form a cycle, the steam is uniform. Fans can accelerate the heat exchange between steam and food packaging.
Throughout the entire process, the pressure inside the sterilization kettle is controlled by the program through high-precision steam film valves to send or discharge compressed air into the sterilization kettle. Due to the steam air mixture sterilization, the pressure inside the kettle is not affected by temperature, and the pressure can be freely set according to the packaging of different products, making the equipment more widely applicable (three piece cans, two piece cans, soft packaging bags, glass bottles, plastic packaging, etc. are also applicable).
The temperature distribution uniformity in the kettle is ± 0.3 "C, and the pressure is controlled at 0.05Bar.

items	FJ1200	FJ1300	FJ1500
Kettle length (mm)	3600	3600	4200
Cubage(m3)	4.46	5.31	8.17
Overall dimensions	5100x2300x3100	5100x2400x3100	5850x2600x3300
Steam consumption	190	200	330
Efficiency(kw)	15	15	20
Designed pressure(mpa)	0.35	0.35	0.35
Designed temperature	147	147	147

Detailed Photos

Why choose us
Firstly,as you know,we have 22 years experience in designing and manufacturing the food retort machine.
Secondly,we have a professional international team with more than 5 years of industrial experience and smooth communication in English.
Thirdly,we can provide a one-stop service as we have a professional engineer group and advanced facilities.
The last but not least,our products are exported to more than 50 countries,such as USA,Japan,Italy,Brazil and so on.Our products have passed ISO9001 international quality management system certification,CE ,BV,DOSH,ASME, KCS,MOM certification.
Retort machines made by ZonGon machinery used full sus 304 material,more stable construction.Fully automatic controlled,liberate the hands of staff.Big size SIEMENS control panel,more clearly showing on what is the process going.Fault alarms are accompanied by indicator lights, allowing the entire sterilization process to be completely under the control of the operator.The emergency stop button helps you quickly and safely stop all work processes.

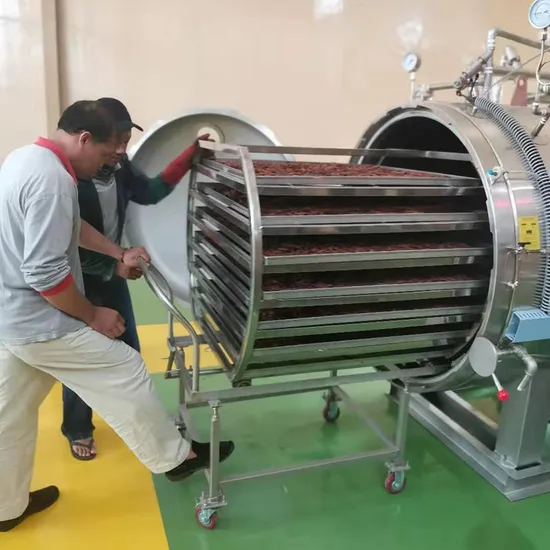

Based on your different packages,we would suggest different loading parts:1.trays,pallets and
trolleys;2.baskets,trolleys,and heat resistant pp spacer.
Scope of application
Certifications
Autoclaves is a kind of pressure vessels,it belongs to special equipment, and formal production and manufacturing can ensure the personal safety of users from the source. Various countries have strict requirements for the production and manufacturing of pressure vessels.ZonGon machinery is a formal manufacturer of pressure vessels in China.Each set of our retort's production meets specifical equipment manufacturing requests.
Our products have obtained these certificates : CE.ISO9001,DOSH,ASME,BV, KCS,MOM to ensure the products meet the safety and quality requirements. What's more, we can also assist you in applying for certificates from any country.
Company Profile
Zhucheng Zhonggong Machinery Co.,Ltd was established in 2002,is a professional designer and manufacturer in the field of food retort machine with 22 years experience.Our main products include high-temperature sterilization retort, jacketed kettle,automatic loading and unloading cage production lines, egg production lines, fresh corn production lines, pet canning lines, etc., suitable for a wide range of food production enterprises.
Our factory is located in Zhucheng City Shandong Province of China, covers an area of 11000 square meters.We have more than 106 employees,6 professional engineer designers, 6 overseas engineers responsible for overseas installation work, 3 QC personnel, and 5 international sales teams, which can provide customers from R&D, design , production and turn key project.
As a professional manufacturer of food retort machine,all of our equipment have passed CE,ISO9001,DOSH,ASME,BV, KCS,COC and MOM certification,and obtained more than .40 utility model patents.
Customers cases display
Followings show you some of our customers cases
After Sales Service
Our service not only before order consulting,but also after sales installation guidance and debugging,operators training issues arrangement.And other after sales services.
Packaging & Shipping

Shipping&Packing
Standard export wooden case packing, fit for multiple handing and long distance marine shipping.
delivery Time
For stock type, we can send within 48hrs after confirming order.
For customized type , delivery date need to be negotiated before taking order.

---
