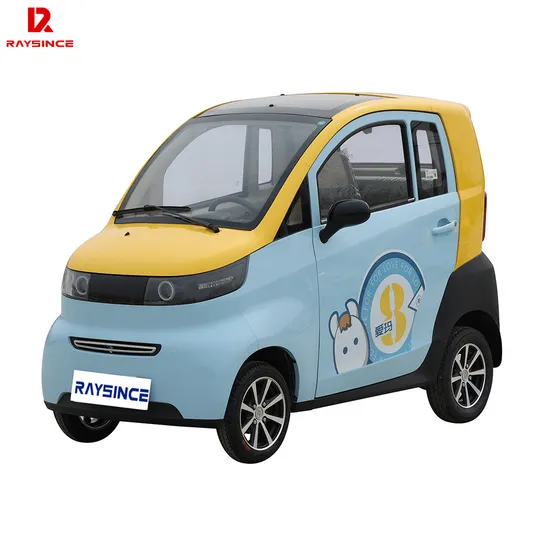

China Raysince New Energy Small Electric Vehicle with EEC Certification

Product Description

Product Parameters

Electrial System
Controller	60V Intelligent Controller		Motor Power	2200 W
Storage Battery	12V*5PCS,80 AH		Traveling Range	80-100km
Battey charger	On board Charger		Charging Time	8-10Hours
Charger Voltage	Single phase,220V(110V)		GW	380 KGS
Technicial Data
Overall Size	2500*1202*1625mm(L*W*H)		Body Material	Injection molding plastic
Seating Capacity	2-3 Seats/ 2 Doors		Chassis Material	Metal
Speed Range	25km/h or 45km/h		Braking Length	≤ 5 Meters
Climbing Capacity	25%		Min.Turning Tadius	8500 MM
Wheel Base	1742 MM		Rear Tracks	1000 MM
Car Body System
Steering System	Handle steering
Seat Material	Imitation leather (PU)
Instrument Panel	Combined Instrument(front/back signal,light,trumpet,dump energy,current speed display)
Lighting System	Combined type front light and back light,braking light,front/back turning light
Switch System	Light switch,main power switch,electric horn,wiper switch.
Entertainment System	Digital LCD panel,Radio,USB Port,Speaker, Bluetooth,Backup Camera,Built-in Antenna
Car Body Painting	Color can be customized.
Safety Performance	Hill assist,Safety belts,Remote control key, Electric window, Warm wind,Sky window.
Chassis System
Drive System	Rear-drive motor,Controller adjusted automatically
Braking System	Disk Brake
Wheel Details	Front: 125/65 R12, Rear: 135/70 R12, Aluminium alloy.
Vehicle Structure	Load-supporting body frame
Front Suspension	MacPherson independent suspension
Rear Suspension	Trailing arm drive axle

Detailed Photos
Packaging & Shipping

LCL (Less Than Container Load)
Package Size:	2600*1300*1800mm		Gross Weight:	450 kgs
Package Way	Fixed inside steel frame,then covered with plywood.

Full Container Loading
20 ft container	2 Units		40 ft container	9 Units
Package Way	Fixed by steel frame,then fixed on the container ground with nylon tape.

Company Profile Raysince, The Electric Car Specialist Around You Anytime.We offer a complete line of Electric car, including low speed car, high speed car, both left hand drive and right hand drive.The series of electric vehicles all have passed and got the CE certificate, and few models with EEC certificate to Europe, WMI Code Certificate. Company have got the goverment permit with the Manufacturer License of Special Equipment, also equiped with full manufacture process: Cutting, Welding, Painting, Assembling and Testing, thats make sure company have strong ability to manufacture all type of Electric Vehicles. The electric car have exported to many countries such as Mexico, Guatemala, Panama, Chile, Nepal, India, Kazakhstan, Uzbekistan and Kenya.
Certifications Customer visit Question answering 1.what the driving speed? Driving speed is 25-45 km/h 2.Do you test all your cars before delivery?
Yes, we have strict inspection procedures to test all the vehicles before delivery.
3. Can I mix different models and colors in one container?
Yes, different models or colors can be mixed in one container. 4.What the featured electric vehicles your company have please?
Electric Car, Electric Golf Cart and Sightseeing Car. 5.How to charging the electric car, if there are any notice during the charge?
Company will send on charger along with the electric car.The power output should be Single phase 60V, should charge 8-10 hours once the battery run out. The charging will be finish automatically once the battery is full.

---
