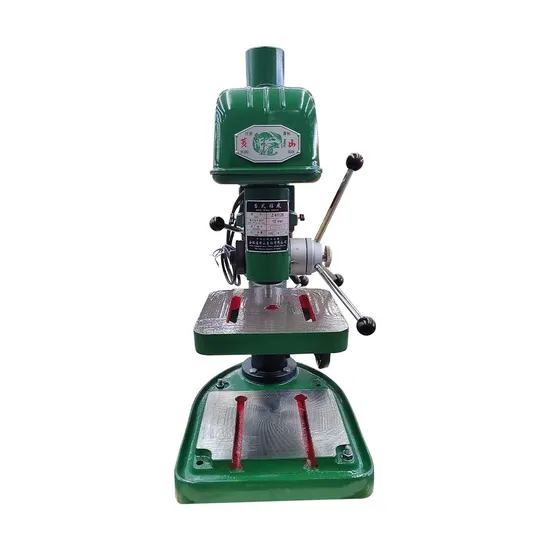

Drilling Machine Industrial Bench Type Milling Thread Semi-Automatic Drill Bench Drilling Machine

Product Description

Model	Z4125/25B
Max. Drilling capacity	25mm
Diameter of column	85mm
Max.spindle travel	126mm
Morse taper of spindle nose	MT.3
Spindle speeds	340-570-1000-1800 r/min
Size of worktable	290*320mm
Size of base worktable	335*335mm
Distance from spindle axis to column surface	242.5mm
Distance from spindle nose to worktable	0-265mm
Distance from spindle nose to base surface	265-545mm
Motor	1.1kw
GW/NW	160/140 kg
Ship measurement	86x47.6x101.3cm

Product Description
Industrial Grade Multifunctional Bench Drill
Thickened cast iron base
Copper wire motor
Double scale
1.Multi-purpose Machine Easy to Deal with
Stable cast iron base, integrated motor powerful power and multiple functions.
2.One Machine for Multiple Purposes
Suitable for metal/wood/stone/plastic and other materials, tapping and drilling.
3.Excellent Details Create Excellent Experience
Quality reflected in every corner
(1)High Power Copper Core Motor
Made of high-purity copper wire,durable, fast speed, low power consumption and fast heat dissipation.
(2)All Steel Handle Fast and Precise Lifting
Unscrew the locking buckle, adjust the lifting handwheel, and lift the drill bit quickly and accurately.
(3)Balanced Adjustment Pulley Durable and Non-slip
The pulley is adjusted through dynamic balance to ensure stable rotation, reduce vibration and make it quieter.
(4)High-quality Lifting Handwheel
Quickly and accurately lift, loosen the locking buckle, adjust the lifting handwheel, and complete the lifting.
(5)High-Precision Metal Drill Chuck
The stainless steel chuck is powerfully clamped to ensure that the drilled holes are not offset and are stable and do not fall off.
4.Factory Direct Sales Source factory, quality assurance
Win tomorrow with trust in quality
Detailed Photos

---
