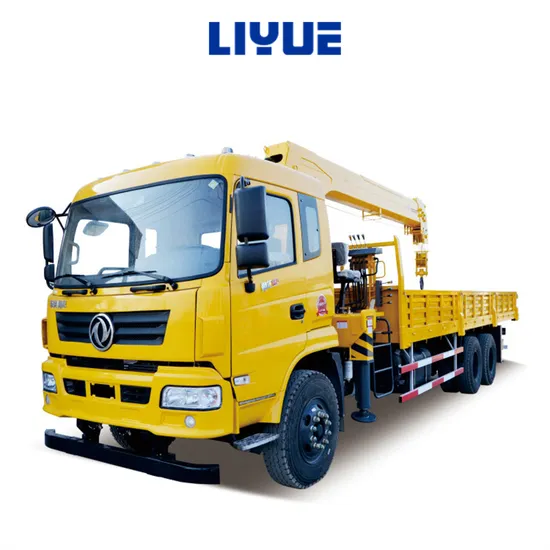

10 Ton Crane Truck in Dubai for Sale

Product Description

10 ton crane truck in dubai for sale Product Parameters Note: The price is only for crane part!

Project		Unit	Value
Crane Dimension	Crane Model	---	SQ 10T
	Max. Lifting Capacity	kg	10000
	Max. Lifting Height	m	12.35
	Working Radius/ Span	m	2.5-12
	Rotation Angle	º	360
	Outrigger Span (Fully Extended)	mm	2280-5580
	Crane Weight	kg	3765
	Hydraulic Tank Capacity	L	160
Chassis Truck Data and Weight	Chassis Brand	---	Dongfeng
	Overall Dimensions (L*W*H)	mm	12000*2500*3980
	Cargo Body Dimensions (L*W*H)	mm	7500*2290*600
	Total Mass	kg	25000
	Rated Loading	kg	8805
	Front and Rear Axle Load	kg	7000/ 18000
	Drive Type	---	6*4 Left/ Right Hand Drive
	Emission Standard	---	Euro 3/ Euro 5
	Front/ Rear Suspension	mm	1250/3400
	Wheel Base	mm	4350+1300
Working Parameter	The Basic Boom Length	m	4.85-12.35
	Diameter of Wire Rope	mm	11
	Length of Wire Rope	m	80
	Speed of Sing Rope (No Load)	m/min	52
	Max. Lines of the Hook	Times	6
Travelling Parameter	Max. Travel Speed	Km/ h	85
	Max. Gradeability	%	30
	Min. Turning Diameter	m	15

Henan Liyue Machinery equipment Co., Ltd., located in Lankao County, Henan Province, is located in
the middle of the Future Avenue of Industrial agglomeration area, is a trading and manufacturing combo.
Our company has launched 3T-25T truck cranes, truck mounted cranes and marine crane to fill the
domestic blank market, and exported to more than 20 countries and regions such as South Africa and
Angola market.
Truck mounted crane, also known as lorry crane, boom crane, arrow crane, telescopic crane, etc. It
can be equipped with cargo boxes of different lengths, generally 3.4m, 4.4m, 5.6m, 8.6m, etc.
Follow up lifting weight can be divided into 3.2 tons, 4 tons, 5 tons, 6.3 tons, 8 tons, 10 tons, 12 tons,
14 tons and 1 ton.
The models of truck mounted cranes mainly include SQ3.2, SQ4, SQ5, SQ6.3, SQ8, SQ10, SQ12, SQ14
and SQ16. Cranes of different tonnage.
Product Process
Our lorry cranes are designed and manufactured according to the national industry standards of China.
The hydraulic parts of our truck cranes are all produced by China's first-class manufacturers.
Certifications
Our truck cranes have obtained many quality certifications, such as CE certification and ISO
certification in Europe. We can also provide GSP certificate of origin such as FORM E according to
customer requirements.
Packaging & Shipping
We have a professional packing team. We can make full use of the space of the container and fix the
crane so that customers can receive the most perfect truck crane.
Our Advantages
We have a large-scale cutting machine, bending machine, CNC cutting machine, copying cutting
machine, plate rolling machine, square tube sewing machine, moving beam gantry milling machine,
shot blasting machine and numerical control lathe and other equipment. The advanced equipment
ensure our truck crane have top quality.
Foreign Cases
Our truck cranes are exported to more than 20 countries around the world, such as Thailand, Indonesia,
Guinea, Romania and other markets. The quality of our cranes has been well received by foreign customers.
Clients Visiting
As a leading manufacturer of 3-25t truck cranes in China, we warmly welcome friends from all over the
world to visit the factory and negotiate business.

---
