3 Layers ABA Co-Extrusion Film Blowing Machine PE/PLA/Biodegradable Film Blown Machine

Product Description

3 Layers aba Co-extrusion film blowing machine PE/PLA/biodegradable film blown machine Introduction:
ABA co-extrusion film blowing machine enjoys advantages in producing HDPE, LDPE and LLDPE material. The strength of plastic film is improved by co-extrusion. Besides, with only two extrusion units, this model achieves function of three layer film blowing machine. One unit deals with inner&outer layer, while the other deals with inner stuffing layer. In this way, costs are reduced and energy is saved. Meanwhile, to enhance market competitiveness of customers, it's possible to add recycled material and CACO3 into inner puffing layer at the rate of 80% of full amount.


Film blowing machine features:
Material of screw and barrel: Alloyed high-quality steel 38CrMoAlA with optimum hardness and strong corrosion resistance after precision finishing and nitrogen treatment
Heaters: stainless heaters

Film blowing machine control Panel
1. Temperature of barrel and die head controlled by digital temperature controller
2. Inverter controls main motor driving speed and film taking up motor running speed
3. Electronics used are all Chinese top brand
4. Current meters and Voltage meters show the working state of motors
5. Small fan installed to avoid high temperature caused by long time running
Main Technical Parameters:

Model	RL-ABA600	RL-ABA800	RL-ABA1000	RL-ABA1200
Suitable material	HDPE/LDPE/LLDPE/Biodegradable materials
Film width	100-600mm	200-800mm	300-1000mm	400-1200mm
Film thickness	0.01-0.15mm
Capacity	50kg/h	60kg/h	70kg/h	80kg/h
Screw diameter	45/50mm	50/55mm	55/60mm	60/65mm
Main motor	11/15kw	15/18.5kw	18.5/22kw	22/30kw
Die size	60mm	80mm	120mm	150mm
Type of Die	ABA Rotary die head/Fixed die head
Air blower	2.2kw	3kw	4kw	5.5kw
Roller width	700mm	900mm	1100mm	1300mm
Take up motor	1.5kw	1.5kw	1.5kw	1.5kw
Rewinder motor	1.5kw	1.5kw	1.5kw	1.5kw
Type of rewinder	Double rewinder/single rewinder
Machine size	4.8*3.0*4.2m	5.2*3.2*4.4m	5.6*4.0*5.0m	6.0*4.4*5.5m
Machine weight	2 Ton	3Ton	4 Ton	5 Ton
Voltage	Three phase,380V/50HZ (Can be customized)

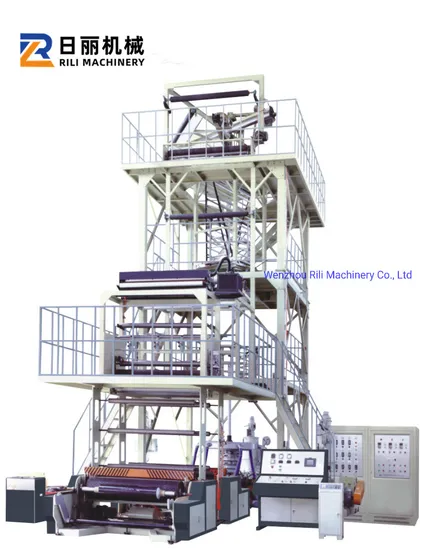

Machine Pictures:
Machine Loading

---
