Vacuum Dewatering Degassing Transformer Oil Purifier Machine

Product Description

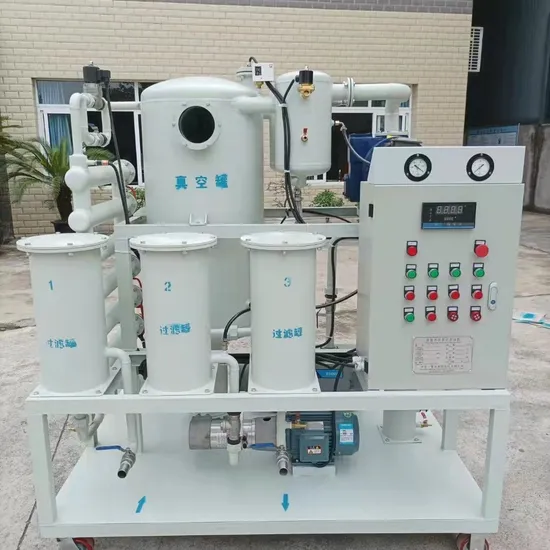

Vacuum Dewatering Degassing Transformer Oil Purifier Machine
Product Description Vacuum Dewatering Degassing Transformer Oil Purifier Machine can quickly remove the water, gas, and other contaminants such as solid particles in the waste insulating oil, transformer oil, capacitor oil, switch oil, mutual inductor oil, etc. The breakdown voltage of the oil after processed can be improved by 35KV or above just for one-time. It is mainly suitable for the power transmissions equipment whose voltage is 110KV or above. It can be equipped with mobile trailer and weather-proof enclosure.
Detailed Photos

Production Process
Product Parameters

Model	ZYD	6	10	20	30	50	80	100	125	150	200	250	300
Flow Rate	L/min	6	10	20	30	50	80	100	125	150	200	250	300
Vacuum Degree	MPa	≤133
Working Pressure	MPa	≤0.5
Continuous Working Hour	H	≥200
Trouble-free Working Hour	H	≥5000
Working Temperature	ºC	40~70
Power Supply	380V,50HZ, 3Phase(Customizable)
Residual Water	≤3PPM
Impurity Size	≤1-3 micron
Residual Gas	≤0.05%
Breakdown Voltage	≥75KV
Oil Appearance	Transparent
Working Noise	dB(A)	≤65
Heating Power	KW	5	9	15	24	30	48	60	66	90	108	120	130
Total Power	KW	6.5	10.5	17.5	26	34	54	68	75	100	120	135	146
Inlet Diam.	mm	19	19	25	32	32	44	44	48	50	58	58	65
Outlet Diam.	mm	19	19	25	32	32	4	44	48	50	58	58	65
Weight	kg	190	220	290	330	420	550	800	950	1300	1450	1700	1800
Dimensions(mm)	L	1100	1210	1230	1250	1350	1550	1600	1610	1900	1930	1950	2000
	W	690	800	850	900	1000	1150	1160	1170	1500	1550	1600	1600
	H	1200	1350	1400	1450	1500	1700	1750	1780	2200	2250	2280	2300

Certifications
Packaging & Shipping

Company Profile
Chongqing Blossom Machinery Equipment Co., Ltd is located in Chongqing, one of the municipalities directly under the central government. The main products include petroleum products apparatus, mechanical machinery such as liquid purification equipment, etc. The equipment is widely applied in construction, petroleum, mechanical, ships, pharmaceutical, lab test and edible oil processing, etc

FAQ 1. What's the payment method?
Payment can be done by cash T/T, L/C, Western Union, ****** Trade Assurance,etc.

2. How long is the delivery period?
Generally it takes about 5-10 working days for production and then the delivery will be done timely.

3.What's the package made of?
The package is made of international export standard wooden case.

4.What's the delivery method?
By train, by air, by sea, by truck, by express, etc.

5. How long is the guarantee period?
The guarantee period is 1 year due to the product quality problems itself.

6.What services can you provide?
Online support through email, telephone, Whatsapp or other communication method; onsite taining and installation if you need; filed maintenance and repair, technical video support, etc.

---
