Oblique Roller Plywood Sander Heavy Duty Sanding Machine

Product Description

Heavy Duty Oblique Sander for Plywood Sanding Machine/ Plywood Wide Belt Sander
Model S2R13X
Configuration

Sanding Unit #1:	Oblique Roller (rubber or steel/ dia.320/420mm)
Sanding Unit #2:	Oblique Roller (rubber or steel /dia.320/420mm)

Electrical Parts
Main motors with thermal relay protection; SIMENS PLC SIMENS Touch screen. Safety Protection
3-color caution light; Emergency stop button on both in-feed and out-feed ends; Belt error/pressure error/ feeding error/ protection. Product Parameters
Working Width: 60 ~ 1300mm
Working Thickness: 3 ~ 100mm
Working Length: ≥ 850mm
Feeding Speed: 10 ~ 50m/min
Size of Sanding Belt: 1330×2800mm
No.1 Motor Power: 75kw
No.2 Motor Power: 75kw
Working table lifting motor power: 0.75kw
Brushing motor power: 0.75kw
Feeding motor power: 11kw
Working Air Pressure: 0.55MPa
Consumption of compressed air: 0.2m3 /min
Speed of sucked air: 28 ~ 30m/s
Volume of sucked air : 20000m3 /h
Overall dimension: 3100×2860×2440mm
Net weight : 11000kg

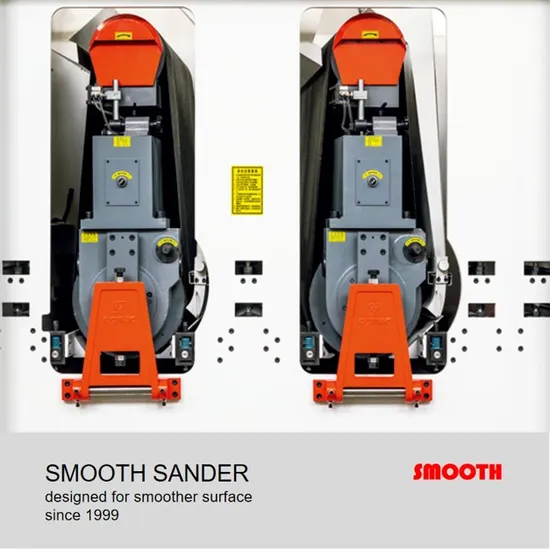

Detailed Photos

You are welcome to contact us for different material sanding technology consulting.
We have done sanding solutions for wooden panels,acoustic panels, metal sheet panels, veneer sheet, PCB boards sanding, funiture,door,flooring,plywood,MDF/HDF, particle boards, etc. manufacturers.

---
