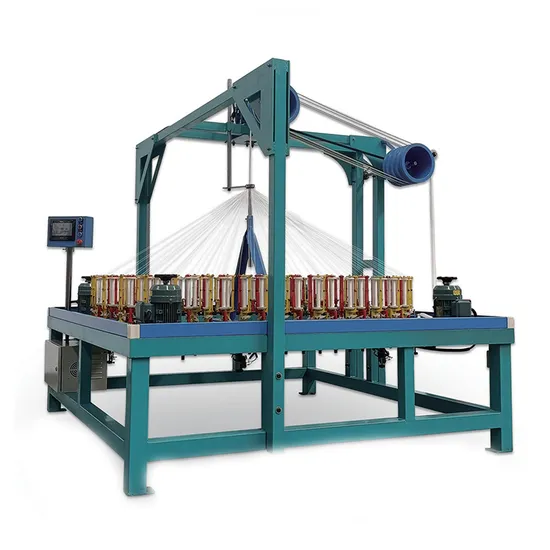

Fiberglass Silicone Sleeving Protective Fireproof Sleeve Braiding Machine

Product Description

Fiberglass Silicone Sleeving Protective Fireproof Sleeve Braiding MachineProduct DescriptionIt is braided by non-alkali fiberglass, then coated with silicone resin and treated in high temperature.
Motor power:0.55kw*2
Max. RMP. horngear: 240r/min
Bobbin size: 47*140mm
Braider size: 1250*1100*1950mmMotor power:0.75kw*2
Max. RMP. horngear: 240r/min
Bobbin size: 47*140mm
Braider size: 1250*1100*1950mm Motor power:0.55kw*4
Max. RMP. horngear: 340r/min
Bobbin size: 47*140mm
Braider size: 1250*1100*1950mm ApplicationRelated MachineType 1: High speed Braiding Machine for High Tensile Wire
Production Description
1. Control form: Automatic digital control (plc+ man-machine interface)
2. Drive motor: frequency conversion + servo motor (variable frequency control of braiding part, haul off servo drive)
3. Braided hose diameter (maximum) mm: Φ60
4. Spool capacity: 7~7.5KG
5. Braiding pitch: 30-179mm
6. Spindle speed r/min: 23 (design speed) 18 (actual working speed)
7. Total power: 14kw
8. The number of braiding layers at one time: 1 layer
9. Dimensions mm: 4027*1980*2450 (length * width * height)
10. Noise reduction protection: full noise reduction protection room
Advantage
* The machine has high speed compared with the ordinary wire braiding machine, easy to operate and high high precision.
* The machine all adopt the automatic control, PLC+ man-machine dialogue interface and servo motor. Greatly improve the precision
of weaving. Reduce the operation difficulty of the workers.
* Fully enclosed structure to reduces the noise and improve the performance of workers safety equipment.
* The spools have large capacity, saves the steel wire waste and reduce the line frequency and improve work efficiency.
* No rubber stop alarm function.
* Break line stop alarm function.
* Fixed length function.
* Fault detection capabilities.
* Three color alarm prompt.
Type 2: Middle Speed Braiding Machine

BJZ High-speed wire braiding machine main tech parameters (Single Decker )
Product model	BJZ16	BJZ20	BJZ24	BJZ36
Spindle Rpm(r/min)	45	35	30	18
Max.Braiding diameter(mm)	10	13	25	51
Bobbin capacity(kg)	7.5	7.5	7.5	7.5
Braiding angle	54°44"	54°44"	54°44"	54°44"
Braiding angle	3765*1728*2150	3765*1728*2150	3765*1728*2150	4027*1980*2450

Type 3:Normal Speed Braiding machine1. Feature:
* The machine has high speed compared with the ordinary steel wire knitting machine efficiency is a little more than 1 times.
* Easy operation, high precision. This machine all adopt the automatic control, PLC+man-machine dialogue interface and servo motor. Greatly improve the precision of weaving. Reduce the operation difficult of the workers.
* Fully enclosed structure to reduces the noise and improve the performance of workers safety equipment.
* The spools large capacity, saves the steel waste and reduce the line frequency and improve work efficiency.
* No rubber stop alarm function
* Break line stop alarm function
* Fixed length function
* Fault detection capabilities
* Three color alarm promp Packaging & Shipping
Company ProfileWe are a professional manufacturer of steel wire braiding machine with more than 35 years of history. Our machines are widely used in many industries: rubber hose, cable and stainless steel metal hose manufacturing. The sizes cover 16 carriers from 128 carrier braiding machines, the wire diameter starts from 0.2 till 1.0mm. We have normal speed type, high-speed type, and super high-speed type, etc..Our braiding machines are horizontal types that enable heavy tensile strength.
Customers
FAQ1. Why choose us as your supplier?
We are most professional in steel wire braiding machine with more than 30
years of experience
2. What wires can you machine braid?
1) Stainless steel wire
2) Copper coated steel wire
3) Cotton Wire
3. What application of your braiding machine?
Popular for both rubber hose and metal hose manufacturing
We need to know the following information to quote you the correct machinery:
1. What outer diameter of the hose you want to braid?
2. Wire diameter
3. Application
4. Do you have any requirements about production efficiency?

---
