| Configuration | Model | |

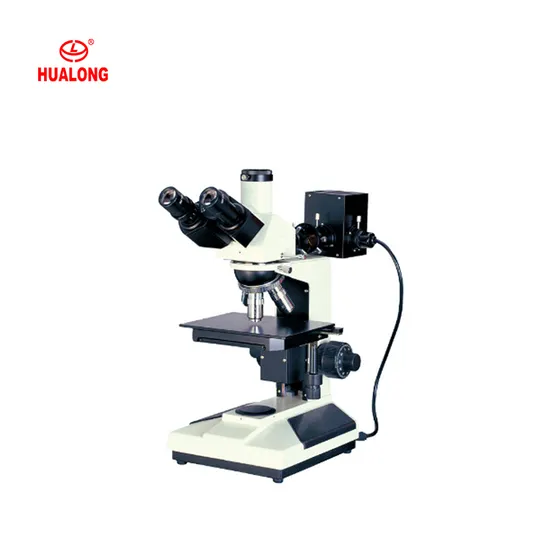

| Parts | Specification | HL501M |
| Lighting system | Infinity Chromatic Aberration Correction Optical System | · |
| Objective tube | 30° tilt, erect image, infinity hinged three-way observation tube, interpupillary distance adjustment: 50mm~76mm, two-speed splitting ratio binocular: trinocular = 100:0 or 0:100 | · |
| 30° tilt, inverted image, infinity hinged three-way observation tube, interpupillary distance adjustment: 50mm~76mm, three-speed splitting ratio binocular: trinocular = 100:0 or 20:80 or 0:100 | O | |
| Eyepiece | High eye point wide field plan eyepieces PL10X/25mm, adjustable diopter | · |
| High eye point large field plan eyepiece PL10X/25mm, adjustable diopter, with single scale cross reticle | O | |
| High eye point large field plan eyepiece PL10X/26.5mm, adjustable diopter, with single scale cross reticle | O | |
| Bright and dark field half complex Achromatic Objectives | LMPLFL 5X /0.15 BD DIC WD13.5mm | · |
| LMPLFL10X/0.30 BD DIC WD9.0mm | · | |
| LMPLFL20X/0.45 BD DIC WD2.5mm | · | |
| LMPLFL50X/0.80 BD WD1.0mm | · | |
| LMPLFL100X/0.90 BD WD1.0mm | O | |
| Convener | Light and dark field 6-hole converter with DIC slot | · |
| Station | Transflective dual-purpose frame, low-hand position coarse and fine coaxial focusing mechanism. The coarse adjustment stroke is 25mm, and the fine adjustment accuracy is 0.001mm. With adjustable elastic device to prevent sliding and random upper limit device. Built-in 100-240V wide voltage system, dual power output, digital dimming, with light intensity setting and reset function, reflected/transmitted light switch, built-in transmitted light filter (LBD, ND6, ND25) | · |
| Stage | Right-hand 4-inch mechanical stage, travel 105mmx102mm, with Y-axis locking mechanism, with transmission system light barrier, with glass stage plate | · |
| Condenser | Swing-Out Achromatic Condenser (N.A.0.9) | · |
| Reflective Illuminator | Bright and dark field reflection illuminator, with variable aperture diaphragm, field diaphragm, adjustable center; with light and dark field illumination switching device; with color filter slot, with polarizer/analyzer slot | · |
| Light room | 12V100W halogen lamp room, common for transmission and reflection, pre-determined center | · |
| Other accessories | Polarizer board, fixed analyzer board, 360°rotating analyzer board | · |
| Interference filter set for reflection | · | |
| DIC Differential Interference Component | O | |
