Product Description
Product Description

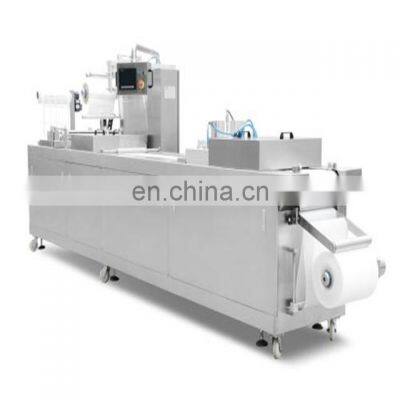

Gas Flushing Type Cheese Thermoforming Vacuum Packaging Machine
Feature:
1. It can automatically making box, avoid the secondary pollution of box pre-making, and reduce the cost of box pre-making cost and storage space.
2. Modular design,and it can be equipped with printer,labelling machine.
3. Big screen PLC control, combined with a variety of sensors, portfolio analysis data, real-time monitoring, keep the machine run smoothly.
Main Technical Parameter:
Machine width
| 1100mm
| Frame width
| 820mm
|
Lower film width
| 460mm
| Machine length
| 7200mm
|
Frame length
| 6200mm
| Machine height
| 1870mm
|
Stepping length
| ≤500mm
| Forming stretching depth
| ≤150mm
|
Packing speed
| ≤7 cycle/min
| control
| Delta PLC
|
Lower film
|
Material
| Thermoforming plastic sheets
| print
| No printing,transparent film or color film
|
Max roll diameter
| 500mm
|
|
|
Cover film
|
Material
| Soft film
| print
| Preprinting cover film,transparent film or color film
|
Max.roll diameter
| 250mm
| Power
| 380V 50Hz
|
Compressed air
| 6 bar
| Cooling water
| 1.5-3 bar
|
Other Details:
1.Package: wooden cases for sea transportation
2.Delivery time: 30 working days after receiving the deposit
3.Installation : engineers available for installation and training overseas
4.Guarantee : 12 months after it is sent out
Plz feel free to contact me for any further information.
