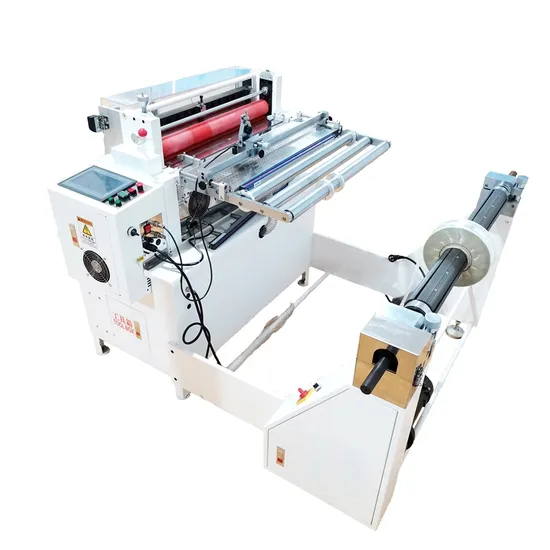

Automatic Hook & Loop Tape Cutter with Automatic Unwinding System

Product Description

Automatic hook & loop tape cutter with automatic unwinding system
Functions for hook & loop tape cutter:
This machine employs servo motor to feed material, import PLC touch screen operation to set any length, quantity, speed and finish singleness cutting, equipped with automatic unwinding system and air shaft, which will be easy to load and unload.
Application for hook & loop tape cutter:
Sizing cutting for aluminum foil, copper foil, PET, PC, PVC, PCB, FPC, Lithium battery film, flannelette, metal foil and all kinds of material in roll form.
Optional:
· Static electricity eliminator
· Conveyor belt
· Photoelectricity marking sensor
· Suck device
Features for hook & loop cutter:
1. The max width: 600mm
2. Tolerence: 0.05mm, Precision: 0.1mm
3. Material thickness: 0.5mm-15mm
4. Kiss cut or cut through available
5. Under CE and ISO Certifications
6. Warranty for machine: 12months
7. Delivery time: 1-3days
8. Hot cut or cold cut available
9. Laminating functions are optional
Characteristics:
1. This machine adopts man-machine interface + PLC program device to set feeding material length, with lamination function
2. Cutting and laminating can be finished at one time.
3. To save time and material, it is ergonomically designed which is easy to operate.
4. The cutting length is accurate.
5. Operation is easy.
6. Waste rate is low.
7. Manufacturing experience: 30 years
8. Export experience: 20 years
Brief Introduction
Kunshan Hexin precise machinery co. Ltd is located in Kunshan city, Jiangsu province, it's only 40 minutes' away from Shanghai Hongqiao airport by car,
And 18 minutes' away from Shanghai railway station by high-speed rail. The
Traffic is very convenient.
We are specialized in developing, manufacturing, marketing and exporting
Microcomputer belt cutting machines, slitting machines, laminating machines, high precision die cutting machines. With strong
Technology, international quality control system and perfect after sale service, our products enjoy a good reputation both at home and aboard market.
With Japanese advanced design drawing and manufacturing technology,
Our machines have come up to the leading levels after continuous improvement for many years, especially in mechanical and electrical, gas and liquid fields. We own professional technical staffs, engineers, sales and after-service
Employees who constitute a young and well-qualified team. Our belief is
"people-oriented, technology-first, integrity-centered and brand idea" and we will provide all our customers with reliable products, perfect service in order to create a brilliant future together.
Our products are widely applied in laminating, slitting and die cutting for
Protective materials, sticky materials, insulating materials, conductive materials, electronic materials, printing materials and so on, and SE for strings, strips, sheets, ropes, lines, belts, rolls, plates, tubes, fibre, rubber,
PET, PVC, PC, metal foils, etc. Our machines can process all kinds of sheet materials, roll materials and so on.

Model	HX- 60 0B
Voltage	380V
Power	2HP
N.W.	320KG
Cutting Length	0.1-9999.9mm
Cutting Width	1- 60 0mm
Cutting precision	±0.05mm
Cutting speed	125(cut/min)
Machine size	1800x13 8 0x1200mm

---
