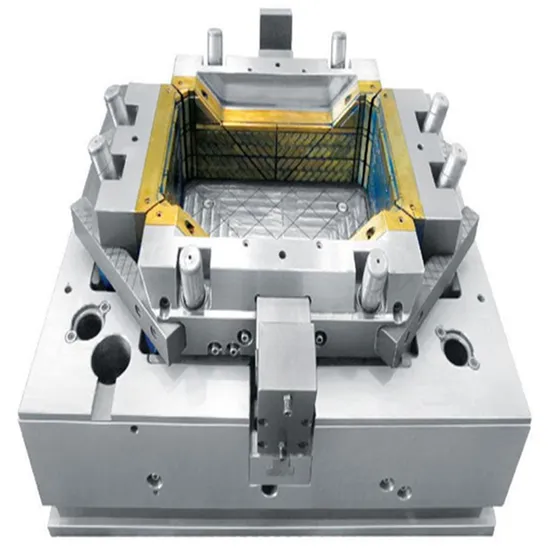

Plastic Fruit Vegetable Supermarket Shopping Basket Foldable Crates Production Injection

Negotiable 1 Set (MOQ)

Basic Info.

Model NO.

SZ-3800A

Type

Preform Injection

Structure

Horizontal

Plastic Type

Thermoplastic

Plasticizing Way

Screw Type

Clamping Way

Hydraulic

Automation

Automatic

Computerized

Certification

CE, ISO9001:2008

Plastic Processed

PP, PC, ABS, Pet, PVC, FRPP/PVC, PPR, HDPE, Mlldpe

Distance Between Tie Bars(mm)

680*680mm

Plasticizing Capacity(G/S)

60.5

Mold Height(mm)

250-710 mm

Ejector Number

Ejector Stroke(mm)

170 mm

Ejector Force(Kn)

90.7 Kn

Theoretical Shot Volume(Cm³)

1231cm

Injection Rate (G/S)

3575g/S

Injection Weight (G)

1120 G

Screw Speed (Rpm)

1-150

Screw Diameter (mm)

70 mm

Screw L/D Ratio

Weight (Kg)

15000

Transport Package

Wooden Box

Specification

3800KN

Trademark

ShenZhou

Origin

Jiangsu, China

HS Code

8477101090

Production Capacity

50 Set/Sets Per Month

Product Description

Standard Features of SZ-Series Injection Molding Machine SZ-3800A Parameter of Plastic Injection Molding Machine

ITEM	UNIT	SZ-3800A
INJECTION UNIT
SCREW DIAMETER	mm	65	70	75
SCREW LID RATIO	L/D	22.6	21	19.6
THEORETICAL SHOT VOLUME	CM3	1061	1231	1413
SHOT WEIGHT(PS)	g	966	1120	1286
INJECTION PRESSURE	Mpa	203	175	152
THEORETICAL INJECTION RATE(PS)	g/s	308	357	410
PLASTICISING CAPACITY	g/s	50.6	60.5	71.5
SCREW TORQUE	N.m	2860
MAX.SCREW ROTATE SPEED	r/min	150
INJECTION STROKE	mm	320
CLAMPING UNIT
MAX.CLAMPING FORCE K	KN	3800
MAX.OPENING STROKE	mm	680
SPACE BETWEEN TIE BARS	mm	680×680
MOULD HEIGHT	mm	250-710
MAX.DAYLIGHT	mm	1390
EJECTOR FORCE	KN	90.7
EJECTOR STROKE	mm	170
EJECTOR QUANTITY		13
OTHER
PUMP MOTOR POWER	KW	37
PUMP PRESSURE	Mpa	16
HEATING POWER	KW	25
HEATING ZONE		5
SIZE	m	6.8×2.0×2.3
NET WEIGHT	t	15
OIL TANK CAPACITY	L	820
INTERNATIONAL DESIGNATION		3800-2150

Company Profile

Packaging & Shipping

Certifications

FAQ
1Q.Do you have an entity factory?
A1 Yes,We are a factory integrating industry and trade and have a whole set of production process.
Q2.How long is our delivery period?
A2 Actually, the delivery time of the machines is depended on the machine options. Normally, the delivery time of standard machine could be within 1-2 month.
Q3.What is the price of your injection molding machine?
A3 Our cost-effective performance is very high, the original parts of the machine are imported, wear-resistant, heat-resistant, high ductility.
Q4.How ahout your after-sales service?
A4 Our machines are guaranteed for life, if conditions permit, we will send engineers to overhaul.
