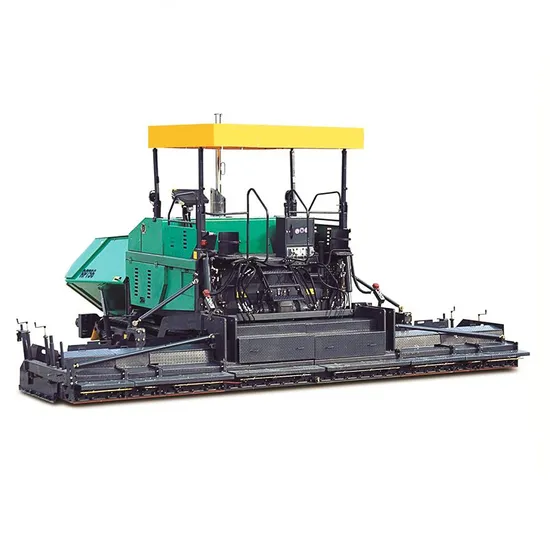

6m Paving Width Top Brand RP603 Asphalt Concrete Paver with 14 Ton Hopper Capacity

US$115,000.00-135,000.00 1 Piece (MOQ)

Basic Info.

Model NO.

RP603

Machining Process

Hydraulic

Structure

Rotor Type

Productivity

700t/H

Feeding Height

1400mm

Vibrating Amplitude

2.4mm

Certification

ISO9001: 2000, CE

Condition

New

Color

Yellow

Max Paving Thickness

320mm

Paving Speed

0~18m/Min

Hopper Capacity

14 Ton

Gradient Ability

20%

Transport Package

Standard Shipment

Specification

7150*3000*3950 mm

Trademark

Newindu

Origin

Jiangsu, China

HS Code

8429521200

Production Capacity

500/Month

Product Description

6m paving width top brand RP603 asphalt concrete paver with 14 ton hopper capacity
Product DescriptionReliable drive system
Efficient feed/ material distribution system
Efficient control system
Strong power system
Advanced screed technology
Parameter

ltem	Unit	RP603
Basic Pave Width	m	2.5~4.75
Maximum Pave Width	m	6
Maximum Layer Thickness	mm	350
Maximum Paving Speed	m/min	20
Maximum Travel Speed	km/h	3
Hopper Capacity	t	14
Maximum Laydown Rate	t/h	400
Engine and Type	-	QSB6.7-C170
Rated Power	kW/rpm	129/2200
Shipping Dimension (LxWxH)	mm	668025003180
Shipping Weight	t	18.5
Full Dimension (LxWxH)	mm	668025004000
Full Weight	t	19

Product show
