2025 Bcmc CNC Stone Sink Cutout Machine Kitchen Counter Top Sink Hole Drilling CNC Router Carving Machine Bathroom Countertop Hole Milling Machine

Product Description

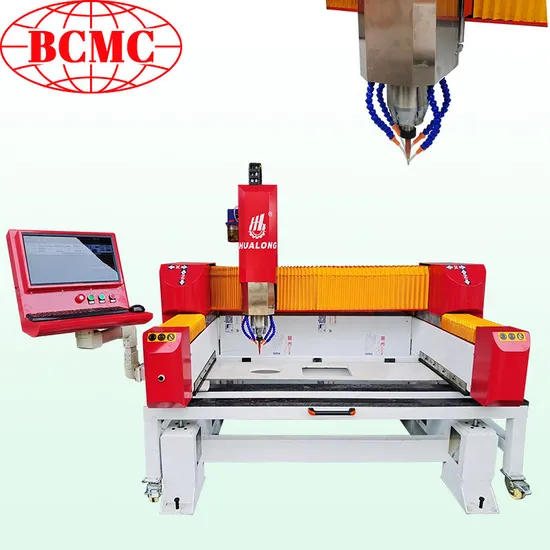

BCMC Machinery BCSK-1308 is a kind of tiny CNC processing center. Multifunctional but low space requires. Mainly used for sink and counter top processing. Low investment, help you to speed up the frequently process such as granite, marble countertop sink cut-outs or stone sculpture processing. It's also available for category carved glass-cutting and engraving melting material. Few space requires so it's easily to place this CNC sink cutting machine even in the smallest stone work shop, but be aware that don't load much too long slabs!
Main Features: Visible and easy operate CNC touch screen High torque brush-less motors, more powerful and more efficient High precision, using the ball screws for axis moving smoothly User-friendly and fast learning Small space occupied, saving space for you Open frame design, no-limits for the length of the slab Automatically control for the air and water pressure Parameters:

Overall Dimensions (L x W x H)(mm)	mm	2800*2200*2400
Work Table/Work Bench Specifications (mm)	mm	1300*800*400
Control system		SLCA100
Servo motor		JMC
Water Cooling Spindle		Brand: SK Power: 7.5 kw Rotating Speed: 0-24000 rpm/min Frequency changing water cooled spindle with high-speed bearing technology, make low noise, fast response, high rotational speed and safeguard stability for longtime work.
Guide rail/Linear guide		Hiwin
Lubrication System		Automatic oil feedingand lubrication system makes the regular maintenance very easy and reduce waste.
Number of axis (coordinates)		3
Power of Water Cooling Spindle	kw	7.5
Max.Speed	mm/min	25000
Max.Processing Speed	mm/min	6000
Spindle Rotating Speed	rpm/min	0-24000
Command		G code
Software		Artcam, Type3
Processing Precision	mm	0.003
Reposition Precision	mm	0.003
Power supply		AC380V/50HZ

Detailed Information For Spare Parts:
Control system
CNC touch screen system SLCA100. Easy setting with the automatic processing function. Make machining job easy, high efficient.
Servomotor
Intergrated drive servomotor, designed to achieve total digital integration with the CNC control system, creates a reliable controlling power for X, Y, Z axis.
Linear Guide
Take up with famous brand top quality Taiwan Hiwin linear to insure the movement of the machine in the 3 axis.
Z axis -- Balls crew
X/Y axis -- Rack & Gear
Water Cooling Spindle
SK brand water cooling spindle. Frequency changing water cooled spindle with high-speed bearing technology, low noise, fast response, high rotational speed and safeguard stability for longtime work.
Auto Lubricating System
Yu Rui automatic oil feeding lubrication system, make regular maintenance easy and reduce waste.
Working Bench
Movable working bench. Easy for load and unload the slabs. Open structure, no-limits for the length of the slabs processed. The slab can be fixed immediately with pneumatic locking pistons.
Application:
* Cut-out by milling cutter
* Under mount sink cut out
* Faucet holes
* Recessed drainer/drain grooves
* Engraving

---
