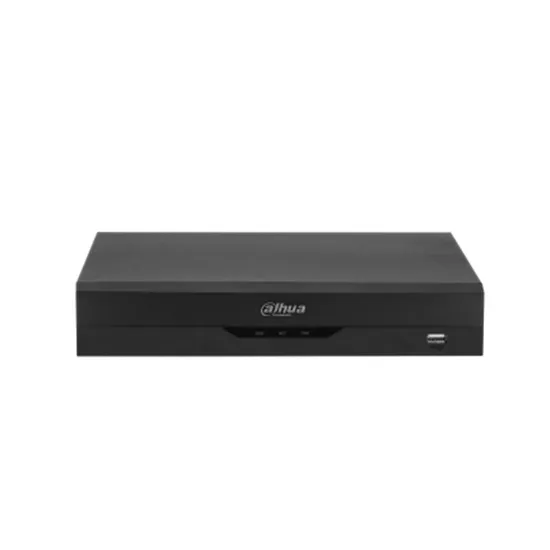

4/8/16 Channels Penta-Brid 5m-N/1080P Compact 1u 1HDD Wizsense Digital Video Recorder (XVR5108/16/32HS-I3)

US$47.00
1-99 Pieces
US$43.00
100+ Pieces

Basic Info.

Model NO.
XVR5104/08/16HS-I3
Operating System
Linux
Application
Commercial DVR
Interface Type
BNC/VGA/HDIM
Video Input/Output
4/8/16channel
Audio Input/Output
1-Channel RCA
Operating Interface
Web; Local Gui
Face Attributes
Gender; Age Group; Glasses; Expressions; Face Mask
Face Detection Performance of Ai by Reco
1 Channel, (up to 8 Face Images/S)
Dual-Stream
Yes
Network Protocol
HTTP; Https; TCP/IP; Ipv4; Rtsp; UDP; SMTP; Ntp; D
Mobile Phone Access
Ios; Android
Interoperability
Onvif 21.06; Cgi Conformant
Network Mode
Single-Address Mode
Record Mode
General, Motion Detection; Intelligent; Alarm; POS
Recording Playback
1/4
Backup Method
USB Device and Network
General Alarm
Motion Detection, Video Loss, Tampering
Anomaly Alarm
No Disk, Disk Error, Low Space, Offline, IP Confli
Intelligent Alarm
Face Detection, Face Recognition, Perimeter Protec
RS-485
1 Port, for PTZ Control
Transport Package
Paper Box
Specification
CE, FCC, UL
Trademark
Dahua
Origin
China
HS Code
8521909090
Production Capacity
10000PCS/Month

Packaging & Delivery

Package Size
30.00cm * 40.00cm * 60.00cm
Package Gross Weight
5.000kg

Product Description

Dear buyers, We are professional Dahua and Hikvision products wholesales , and the products we sell are neutral and Barnd packing Below are the features and specification of this camera in detail: XVR5104/08/16HS-I3 4/8/16 Channels Penta-brid 5M-N/1080P Compact 1U 1HDD WizSense Digital Video Recorder
> H.265+/H.265 dual-stream video compression
> Supports HDCVI/AHD/TVI/CVBS/IP video inputs
> Max 12 channels IP camera inputs, each channel up to 6MP; Max 64 Mbps incoming bandwidth
> Up to 2 channels video stream (analog channel) Perimeter Protection
> Up to 8 channels video stream (analog channel) SMD Plus
> Up to 1 channels video stream (analog channel ) human face recognition
> IoT & POS functionalities

**Specifications**
XVR5104HS-I3

System
Main Processor
 Industrial-grade processor
Operating System
 Embedded Linux
Operating Interface
 Web; Local GUI
Perimeter Protection
Perimeter Performance AI by Recorder (Number of Channels)
 Advanced Model : 1 channel, 10 IVS for each channel
General Model : 2 channels, 10 IVS for each channel
Face Detection
Face Attributes
 Gender; age group; glasses; expressions; face mask; beard
Face Detection Performance of AI by Recorder (Number of Channels)
 1 channel, (up to 8 face images/s)
Face Recognition
Face Database Capacity
 Up to 10 face databases and 10,000 images.
Face Recognition Performance of AI by Recorder (Number of Channels)
 1 channel
SMD Plus
SMD Plus by Recorder
 4-channel: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change
Audio and Video
Analog Camera Input
 4 channels, BNC: adaptive access by default; HDCVI, AHD, TVI and CVBS access can be configured.
Camera Input
 1. CVI: 5 MP, 4 MP, 1080p@25/30 fps, 720p@50/60 fps, 720p@25/30 fps.
2. TVI: 5 MP, 4 MP, 1080p@25/30 fps, 720p@25/30 fps.
3. AHD: 5 MP, 4 MP, 1080p@25/30 fps, 720p@25/30 fps.
4. CVBS: PAL/NTSC
IP Camera Input
 Up to 6 channels of IPC access
2 IP channels by default + 4 channels (analog channels are converted to IP channels)
incoming bandwidth: 32 Mbps, recording bandwidth: 32 Mbps and outgoing bandwidth: 32 Mbps
*After IP channels are added beyond the existing channels, the AI Function (IVS, SMD, FACE) will be disabled.
Encoding Capacity
 Main stream: All channel 5M-N (1 fps-10 fps);
4M-N/1080p (1 fps-15 fps); 1080N/720p/960H/
D1/CIF (1 fps-25/30 fps)
Sub stream: D1/CIF (1 fps-15fps)
Dual-stream
 Yes
Video Bit Rate
 32 kbps-6144 kbps
Audio Sampling
 8 kHz, 16 bit
Audio Bit Rate
 64 kbps
Video Output
 1 HDMI, 1 VGA
HDMI/VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
Multi-screen Display
 When IP extension mode not enabled: 1/4
When IP extension mode enabled: 1/4/6
Third-party Camera Access
 ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Samsung
Compression Standard
Video Compression
 AI Coding; H.265+; H.265; H.264+; H.264
Audio Compression
 G.711a; G.711u; PCM
Network
Network Protocol
 HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P
Mobile Phone Access
 iOS; Android
Interoperability
 ONVIF 21.06; CGI Conformant
Browser
 Chrome
IE9 or later
Firefox
Network Mode
 Single-address mode
Recording Playback
Record Mode
 General, motion detection; intelligent; alarm; POS
Recording Playback
 1/4
Backup Method
 USB device and network
Playback Mode
 Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection)
Alarm
General Alarm
 Motion detection, video loss, tampering
Anomaly Alarm
 No disk, disk error, low space, offline, ip conflict, MAC conflict
Intelligent Alarm
 Face detection, face recognition, perimeter protection
Alarm Linkage
 Record, snapshot (panoramic), IPC external alarm output, access controller, voice prompt, buzzer, log, preset, email
Ports
Audio Input
 1-channel RCA
4-channel BNC (Coaxial Audio)
Audio Output
 1-channel RCA
Two-way Talk
 Yes (share the same audio input with the first channel)
HDD Interface
 1 SATA port, up to 16 TB. The maximum HDD capacity varies with environment temperature.
RS-485
 1 port, for PTZ control
USB
 2 USB ports (USB 2.0)
HDMI
 1
VGA
 1
Network Port
 1 (10/100 Mbps Ethernet port, RJ-45)
General
Power Supply
 12 VDC, 1.5 A
Power Consumption
 <4 W
Net Weight
 1.0 kg (2.20 lb)
Gross Weight
 1.4 kg (3.08 lb)
Product Dimensions
 260.0 mm × 237.9 mm × 47.6 mm (10.24'' × 9.37'' × 1.87'') (W × D × H)
Packaging Dimensions
 333.0 mm × 315.0 mm × 89.0 mm (13.11" × 12.40 × 3.50") (W× D × H)
Operating Temperature
 -10 °C to +55 °C (+14 °F to +131 °F)
Operating Humidity
 0%-90% (RH)
Installation
 Desktop
Certifications
 FCC: Part 15 Subpart B
CE: CE-LVD: EN 60950-1/IEC 60950-1
CE-EMC: EN 61000-3-2; EN 61000-3-3; EN 55032; EN50130; EN 55024

XVR5108HS-I3
System
Main Processor
 Industrial-grade processor
Operating System
 Embedded Linux
Operating Interface
 Web; Local GUI
Perimeter Protection
Perimeter Performance AI by Recorder (Number of Channels)
 Advanced Model : 1 channel, 10 IVS for each channel
General Model : 2 channels, 10 IVS for each channel
Face Detection
Face Attributes
 Gender; age group; glasses; expressions; face mask; beard
Face Detection Performance of AI by Recorder (Number of Channels)
 1 channel, (up to 8 face images/s)
Face Recognition
Face Database Capacity
 Up to 10 face databases and 10,000 images.
Face Recognition Performance of AI by Recorder (Number of Channels)
 1 channel
SMD Plus
SMD Plus by Recorder
 8-channel: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change
Audio and Video
Analog Camera Input
 8 channels, BNC: adaptive access by default; HDCVI, AHD, TVI and CVBS access can be configured.
Camera Input
 1. CVI: 5 MP, 4 MP, 1080p@25/30 fps, 720p@50/60 fps, 720p@25/30 fps.
2. TVI: 5 MP, 4 MP, 1080p@25/30 fps, 720p@25/30 fps.
3. AHD: 5 MP, 4 MP, 1080p@25/30 fps, 720p@25/30 fps.
4. CVBS: PAL/NTSC
IP Camera Input
 Up to 12 channels of IPC access
4 IP channels by default + 8 channels (analog channels are converted to IP channels)
incoming bandwidth: 64 Mbps, recording bandwidth: 64 Mbps and outgoing bandwidth: 64 Mbps
*After IP channels are added beyond the existing channels, the AI Function (IVS, SMD, FACE) will be disabled.
Encoding Capacity
 Main stream: All channel 5M-N (1 fps-10 fps);
4M-N/1080p (1 fps-15 fps); 1080N/720p/960H/
D1/CIF (1 fps-25/30 fps)
Sub stream: D1/CIF (1 fps-15 fps)
Dual-stream
 Yes
Video Bit Rate
 32 kbps-6144 kbps
Audio Sampling
 8 kHz, 16 bit
Audio Bit Rate
 64 kbps
Video Output
 1 HDMI, 1 VGA
HDMI/VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
Multi-screen Display
 When IP extension mode not enabled: 1/4/8/9
When IP extension mode enabled: 1/4/8/9/16
Third-party Camera Access
 ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Samsung
Compression Standard
Video Compression
 AI Coding; H.265+; H.265; H.264+; H.264
Audio Compression
 G.711a; G.711u; PCM
Network
Network Protocol
 HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P
Mobile Phone Access
 iOS; Android
Interoperability
 ONVIF 21.06; CGI Conformant
Browser
 Chrome
IE9 or later
Firefox
Network Mode
 Single-address mode
Recording Playback
Record Mode
 General, motion detection; intelligent; alarm; POS
Recording Playback
 1/4
Backup Method
 USB device and network
Playback Mode
 Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection)
Alarm
General Alarm
 Motion detection, video loss, tampering
Anomaly Alarm
 No disk, disk error, low space, offline, ip conflict, MAC conflict
Intelligent Alarm
 Face detection, face recognition, perimeter protection
Alarm Linkage
 Record, snapshot (panoramic), IPC external alarm output, access controller, voice prompt, buzzer, log, preset, email
Ports
Audio Input
 1-channel RCA
8-channel BNC (Coaxial Audio)
Audio Output
 1-channel RCA
Two-way Talk
 Yes (share the same audio input with the first channel)
HDD Interface
 1 SATA port, up to 16 TB. The maximum HDD capacity varies with environment temperature.
RS-485
 1 port, for PTZ control
USB
 2 USB ports (USB 2.0)
HDMI
 1
VGA
 1
Network Port
 1 (10/100 Mbps Ethernet port, RJ-45)
General
Power Supply
 12 VDC, 2 A
Power Consumption
 <7 W
Net Weight
 1.1 kg (2.43 lb)
Gross Weight
 1.5 kg (3.31 lb)
Product Dimensions
 260.0 mm × 237.9 mm × 47.6 mm (10.24'' × 9.37'' × 1.87'') (W × D × H)
Packaging Dimensions
 333.0mm × 315.0mm × 89.0 mm (13.11" × 12.40" × 3.50") (W× D × H)
Operating Temperature
 -10 °C to +55 °C (+14 °F to +131 °F)
Operating Humidity
 0%-90% (RH)
Installation
 Desktop
Certifications
 FCC: Part 15 Subpart B
CE: CE-LVD: EN 60950-1/IEC 60950-1
CE-EMC: EN 61000-3-2; EN 61000-3-3; EN 55032; EN50130; EN 55024

XVR5116HS-I3
System
Main Processor
 Embedded processor
Operating System
 Embedded Linux
Perimeter Protection
Perimeter Performance AI by Recorder (Number of Channels)
 Advanced Model: 2 channel, 10 IVS for each channel General Model: 4 channels, 10 IVS for each channel
Face Detection
Face Attributes
 6 attributes: Gender, age groups (6), glasses, expressions (8), face mask, beard, with up to four detection panels displayed at the same time.
Face Detection Performance of AI by Recorder (Number of Channels)
 2 channels, and a single channel can detect up to 12 faces.
Face Recognition
Face Database Capacity
 Up to 10 face databases and 10,000 pictures.
Face Recognition Performance of AI by Recorder (Number of Channels)
 2 channels
SMD Plus
SMD Plus by Recorder
 Full-channel SMD Plus (AI by recorder), secondary filtering for human and motor vehicle SMD Plus, reducing false alarms caused by leaves, rain and lighting condition change
Audio and Video
Analog Camera Input
 16 channels, BNC: adaptive access by default; HDCVI, AHD, TVI and CVBS access can be configured.
Camera Input
 1. CVI: 5MP, 4MP, 1080p@25/30 fps, 720p@50/60 fps, 720p@25/30 fps.
2. TVI: 5MP, 4MP, 1080p@25/30, 720p@25/30 fps.
3. AHD: 5MP, 4MP, 1080p@25/30, 720p@25/30 fps.
IP Camera Input
 16+8 channels, each channel up to 6MP
Encoding Capacity
 All channel 5M-N (1 fps-10 fps); 4M-N/1080p (1 fps-15fps); 1080N/720p/960H/D1/CIF (1fps-25/30 fps)
Dual-stream
 Supported (D1/CIF (1 fps-15 fps)).
Video Frame Rate
 PAL: 1 fps-25 fps.
NTSC: 1 fps-30 fps.
Video Bit Rate
 32 Kbps-6144 Kbps Per Channel
Audio Sampling
 8 KHz, 16 bit Per Channel
Audio Bit Rate
 64 Kbps Per Channel
Bit Rate Type
 Video stream and composite stream.
Video Output
 1 HDMI ,1 VGA
VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
It changes to 1920 × 1080, 1280 × 1024, 1280 × 720 when Face or IVS&SMD is selected in AI Mode.
Multi-screen Display
 When IP extension mode not enabled: 1/4/8/9/16
When IP extension mode enabled: 1/4/8/9/16/25
Third-party Camera Access
 Onvif, RTSP, Panasonic, Sony, Axis, Arecont, Pelco, Canon, Samsung;
Compression Standard
Video Compression
 AI Coding/H.265+/H.265/H.264+/H.264
Audio Compression
 G.711A/G.711u/PCM
Network
Network Protocol
 HTTP, HTTPS, TCP / IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P
Mobile Phone Access
 iPhone, iPad, Android
Interoperability
 ONVIF 16.12, CGI Conformant
Browser
 Chrome, IE9 or above, Firefox
Network Mode
 Single-address mode
Recording Playback
Record Mode
 Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Recording Playback
 1/4/9/16
It changes to 1/4/9 split when Face or IVS&SMD is selected in AI Mode.
Backup Method
 USB Device/Network
Playback Mode
 Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection)
Alarm
General Alarm
 Motion detection, Video Loss, tampering
Anomaly Alarm
 No disk, disk error, low space, offline, ip conflict, MAC conflict
Intelligent Alarm
 Face detection, face recognition, perimeter protection
Alarm Linkage
 Record, snapshot (panoramic), IPC external alarm output, access controller, voice prompt, buzzer, log, preset, email
Ports
Audio Input
 1, RCA (external)
16, BNC (coaxial)
Audio Output
 1, RCA
Two-way Talk
 Yes (share the same audio input with the first channel)
HDD Interface
 1 SATA Port, up to 16TB for a single HDD, the maximum HDD capacity varies with environment temperature
RS-485
 1 Port, for PTZ Control
USB
 2 USB Ports (1 USB 2.0 , 1 USB 3.0)
HDMI
 1
VGA
 1
Network Port
 1 (10/100/1000 Mbps Ethernet port, RJ-45)
General
Power Supply
 DC12V, 2A
Power Consumption
 Lower than 12 W
Net Weight
 1.17 kg (2.58 lb)
Gross Weight
 1.57 kg (3.46 lb)
Product Dimensions
 Compact 1U, 260.0 mm × 237.4 mm × 47.6 mm (W × D × H) 10.24" × 9.35" × 1.87" (W × D × H)
Packaging Dimensions
 333.0 mm × 89.0 mm × 315.0 mm (L × W × H)
13.11" × 3.50" × 12.40" (L× W × H)
Operating Temperature
 -10 °C to +55 °C (+14 °F to +131 °F)
Operating Humidity
 10%-90%
Installation
 Desktop
Certifications
 CE: CE-LVD: EN 60950-1/IEC 60950-1
CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024
FCC: Part 15 Subpart B
**FAQ** 1)Why choose us? Competitive Price:Our company has built up friendly relations with Dahua,Hikvision since 2015.So we get a good price for our customers.If you need our product,pls chat with our salesman and inquire. Friendly and fast service:We have special staff to deal with problems before and after sales .Don't be afraid if you meet problems.We are here! 2)When will you ship my order? Products are popular,so inventory is always changing.Please contact us before you pay and we will confirm the date with you. 3)Can I install the security cameras by myself? Of course!There is always a user manual in the packaging box.You can contact us directly if you meet any problems.We are here! 4)How about warranty? 2-year warranty period(since the date you receive the order). 5)How about the shipping ?
Air, sea, express each station way you choose

If interested in this camera,pls contact us today and know the most latest information
>> Nij III 7.62*39mm UHMWPE Ceramic Balistic Plates for Bodyarmor
>> custom Food Grade stand up milk tea small snack liquid clear drink juice drink handle packaging stand up pouch with spout 500ml
>> Trendy Long Cardigan Sweater with Checkered Design for Women
>> China suppliers equipment for gold mining 1t/h mine shaking table for sale
>> New H8pro Smart Watch Bracelet Ladies Heart Rate Blood Pressure Blood Oxygen Test Female Physical Cycle Stopwatch
>> HC-R083 Cheap price veterinary uterine cleaner animal manuel uterus washer
>> Customizable Plastic Pallet Solutions for Diverse Shipping Requirements
>> OEM Heavy Base Glass Perfume Bottle Empty Glass Fragrance Parfum Spray Bottle
>> Automatic Tissue Post -Processing Machine Production Line with Servo-Driven
>> Baking Commercial 16 32 64 Bracket Rotisserie Oven
>> New Model 1390 CO2 Laser Cutting and Engraving Machine Laser MDF Cutter Wood Cutter CNC
>> Outdoor Travel Portable PVC Sports Waterproof Bag Large Capacity Single Shoulder Bucket Bag For Outdoor Rafting
>> Perspective bed
>> 3FT 4FT 7FT Hard Stone Rock Symons Stone Crushing Cone Crusher Equipment
>> High Quality OEM 355m/485ml /1L Synthetic Brake Fluid Oil DOT3 Factory
>> Automatic Vacuum Air Sealing System Food Sealer For Food Preservation Storage Saver Vacuum Sealer Machine
>> Custom High Quality 1 Litre Square Popcorn Tub Cup Red White Striped Box Reusable Food Grade Plastic Popcorn Containers
>> Premium Magnetic Paddle Brass Water Flow Switch Sensor
>> Efficient Injection Molding Machine for 32g Pet Preforms
>> German Technology Full Automatic Duyue Qt4-20 Hydraulic Cement Block Brick Making Machine Concrete Paver Block Molding Machine, Hollow Block Making Machine
