12000nm Electric Torque Wrench Digital Vertical Type Adjustable Nut Bolt Gun Construction Power Tools

Product Description

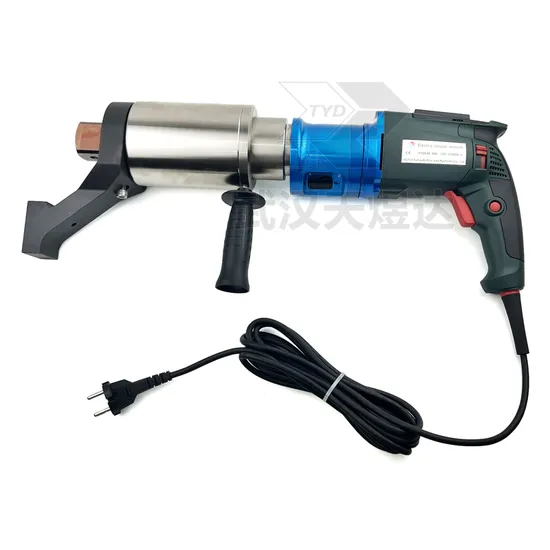

12000Nm Electric Torque Wrench Digital Vertical Type Adjustable Nut Bolt Gun Construction Power Tools
Model: TYDEW-120S
Products Description
TYDEW series Industrial Heavy Duty Digital Electric Torque Wrench is a hand-held rotary electric tool with a reaction arm, which can set the torque accurately, used to complete the tightening/removing work of nuts or bolts, the driving part adopts high-efficiency AC motor, high-speed intelligent chip control, LCD display, the mechanical part adopts planetary gear reduction mechanismInput: 220-240V AC,50/60Hz
Torque: 100Nm-12000Nm
Digital control: LCD display Product Parameters

Model	Min torque(N.m)	Max torque(N.m)	Drive S(mm)	Diameter D(mm)	Length L(mm)	Width K(mm)	Length M(mm)	Weight(Kg)	2rd torque range(N.m)	1st torque range(N.m)	1st Rotating speed rpm	2rd Rotating speed rpm
TYDEW-08S	100	800	3/4"	78	426	205	174	5	100~595	600~800	13.00	30
TYDEW-16S	200	1600	1"	78	452	205	200	6.5	200~790	800~1600	4.70	12.20
TYDEW-20S	200	2000	1"	78	452	205	200	6.5	200~790	800~2000	4.70	12.2
TYDEW-28S	400	2800	1"	88	485	205	233	8.7	400~1180	1200~2800	2.30	6.30
TYDEW-40S	700	4200	1-1/2"	99	508	205	256	9.6	700~2075	2100~4200	2.20	5.1
TYDEW-60S	1000	6000	1-1/2"	113	526	205	274	15.4	1000~2475	2500~6000	0.90	2.60
TYDEW-80S	1200	8000	1-1/2"	120	536	205	284	16.8	1200~2450	2500~8000	0.70	1.8
TYDEW-100S	2000	10000	1-1/2"	128	569	205	317	18.3	2000~3450	3500~10000	0.63	1.50
TYDEW-120S	2000	12000	1-1/2"	128	583	205	331	18.5	2000~3950	4000~12000	0.63	1.5

Product Features
* High output and repeat accuracy: ± 5% and ±3%.* Preset torque and automatic shutoff when reaching the setted torque.* Single-chip intelligent torque control system with LCD display.* With single speed gearbox, light weight,small size and high speed,and easily operated.* Very suitable for continuous operation in production assembly and maintenance.* Free connection of Power handle and drive unit, could be rotated 360°.* Higher efficiency whether tighting or removing bolts and nuts than hydraulic torque wrench.* Portable and durable design, low noise, with overload protection.* After-sales service: 1 year guarantee period, life-long maintenance.* Supply scope :1 pcs torque wrench,1pcs reaction arm,1 copy operating instructions,1 copy test report..Why Choose Us
Company Profile
Wuhan TianYuDa Precision Machinery Co., Ltd. is a professional manufacturer of torque tools and products, we have been in the industry for more than 12 years. We successfully transformed from OEM manufacturer to create our own brand TYD, and our factory has been approved by CE, and ISO9001 consecutively. Our Products have been widely used in petrochemical, cement, shipbuilding, steel plant heavy construction areas, etc.

---
