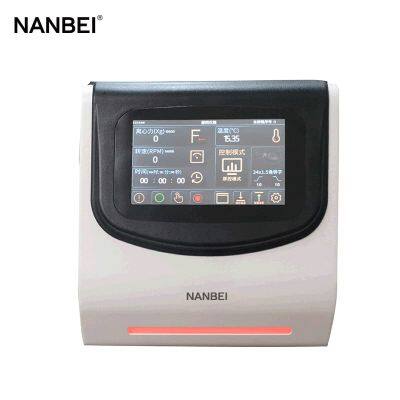

Laboratory 7116M Desktop High-speed Centrifuge Machine

Product Details

Product Description

Product Description
Laboratory 7116M Desktop High-speed Centrifuge Machine
Main purposes
This machine is mainly used for rapid precipitation and separation of DNA, RNA, proteins and viruses.
It is applied in bacterial and protein precipitation, nucleic acid extraction, cell/subcellular component separation,
environmentally friendly sample processing, clinical testing sample processing, etc.
Product advantages
1. Brand new XIUI3.0 operating system, touch screen programmable operation, microcomputer control,
direct drive of brushless DC motor, precise speed control.
2. 7-inch IPS LCD touch screen with wide viewing angle, digital input, simple operation, real-time interface
display of settings and operating parameters; multi-functional breathing light makes the experimental process
colorful; full-steel housing adopts surface corrosion-resistant orange peel fine wrinkle treatment and has plump
lines, which is based on visual beauty and gives it an industrial ergonomic overall design with sense of security
and high recognition rate.
3. It has various sound and light warning and protection functions such as overspeed, overtemperature, imbalance,
misoperation, overcurrent and overvoltage, and anti-hand pinching; the hydrogen-resistant, oil-resistant,
acid-alkali-resistant fluorosilicone rubber sealing ring can work at -55 ~ +200 ℃ for long term ; the beautiful and
compact inner panel of the compression-molded hatch dually prevents aerosol from spilling out; it adopts design
of 304 stainless steel integrated seamless molded corrosion-resistant centrifugal chamber, steel cylinder liner,
and sound-absorbing air duct.
4. The door cover adopts an electronic door lock, which supports one-click opening. To close the door cover,
only need to lightly close the cover to automatically lock the door. The door cover can be opened manually
during shutdown or power outage;
5. Optional Bluetooth/type-c interface, short-range control by mini programs, convenient for system upgrades
and experimental data downloading.
6. 10 gears speed-up/10 gears speed-down; three-level damping and shock absorption to ensure smooth operation
of the sample without re-suspension; 99 sets of programs can be stored; the inching, timing, differential time,
density, and gradient centrifugation functions can be programmed according to user needs to meet diversified
experimental requirements.
7. Optional rotor automatic identification function can automatically load and lock rotor parameters; parameters
can be modified during operation without stopping, and current parameters are automatically saved.
Host parameters

Model	7116M
Max capacity	12x10mL
Max speed	16500r/min
Max relative centrifugal force	22500xg
Speed accuracy	±20r/min (it can be customized according to needs, multiples of 10)
Control and drive system	Microcomputer control, maintenance-free high-torque brushless DC variable frequency motor
Display method	7-inch wide viewing-angle IPS LCD touch screen
Operation method	Touch control (optional short-range control)
Rotor identification	Automatically load and lock rotor parameters (optional)
Upshift/downshift	10 gears speed-up/10 gears speed-down
Timing range	1s-99h59min59s, with continuous centrifugation and instantaneous centrifugation
Total power	0.35kW
Noise	≤60dB(A)
Power supply	AC220V 50Hz
Weight	18.6kg
Dimensions (LxWxH)	385mm x 260mm x 305mm

Rotor parameters

---
