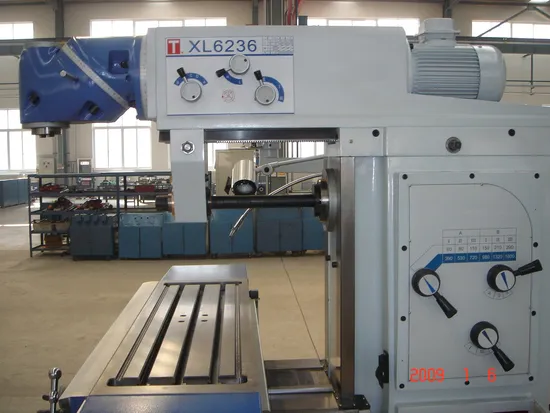

Universal cutter head with 2 levels can be adjusted to virtually any angle (HURON System)
| Specification | XL6236 |
| Spindle taper | 7:24 ISO40(V) |
| | 7:24 ISO50(H) |
| Distance from spindle center line to column surface | 350~850mm |
| Distance from spindle nose to worktable | 210~710mm |
| Distance from spindle center line to worktable | 0~500mm |
| Distance from spindle center line to arm | 175mm |
| Spindle speed | 11steps 35~1600r/min (V) |
| | 12steps 60~1800r/min (H) |
| Worktable size | 1250×360mm |
| Worktable travel Longitudinal | 1000X320X500mm |
| Worktable longitudinal/cross power feed | 8steps 15~370mm/min |
| | Rapid:540mm/min |
| Worktable elevating power feed | 590mm/min |
| "T"slot(Number/Width/Distance) | 3/18/80mm |
| Main motor | 3.0kw (V) 4kw (H) |
| Worktable power feed motor | 750w |
| Worktable elevating motor | 1.1kw |
| Overall dimension (L×W×H) | 2220×1790×2040mm |
| Net weight | 2400kg |
