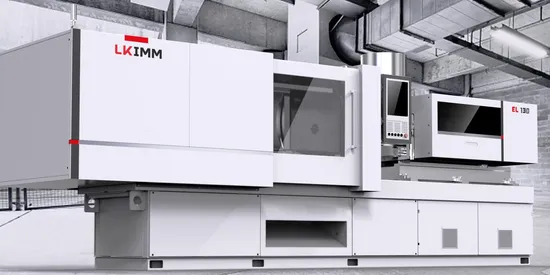

LK Elettrica-100 Ton Electric Plastic Injection Molding Machine

Product Description

Brief Introduction
LK group specializes in the design manufacture and sales of die casting machines, high precision injection molding machines, CNC machine centers, and industrial integrated control systems. Our market share of die casting machines is over 60%, the injection molding machine ranks among the top 5 in China.
We have 12 companies worldwide, 10 in domestic China, 1 in Taiwan and 1 acquired company IDRA in Italy, it is one of the world's leading die casting machine manufacturers. Our injection molding machine centers are Zhongshan in Guangdong and Ningbo in Zhejiang.
There are over 60 sales and service centers in the world with high-quality after-sales service. Our 24-hour prompt response system provide all-around fully coverage customer service.
Elettrica series 100 ton - 450 ton
Key features
Direct drive injection and clamping axis
Servo hydraulic auxiliary axis for corepull
Electric servo motor ejector and metering axis
Automatic clamping force adjustment
European technology
Use of application
Power tool, Personal Care, Medical, Automotive, Optical, Food industry
Technical Parameter List

ITEM		UNIT	EL100
Injection Unit	Injection unit		130I/130M			170I/170M			220I/220M
	Injection Speed	mm/s	200/350			200/350			200/350
	Screw type		A	B	C	A	B	C	A	B	C
	Screw Diameter	mm	22	26	30	26	28	30	28	32	36
	Shot Weight	g	38	53	71	56	64	74	73	95	120
	Injection Volume	cm3	42	58	78	61	71	81	80	105	132
	Injection Pressure	MPa	290	210	160	260	225	190	260	200	160
	Injection Holding Pressure	MPa	230	165	125	200	180	150	205	160	125
	Plasticizing Capacity	Kg/h	22	32	47	32	40	47	40	58	70
	Nozzle Pressing Force	kN	36			36			36
	Screw Speed	r/min	400			400			400
Clamping Unit	Locking Force	kN	1000
	Die Height (Min.-Max.)	mm	150-410
	Opening Stroke	mm	320
	Space Between Tie Bars	mm	420×420
	Ejector Stroke	mm	80
	Ejector Force	kN	25
	Minimum Mold Height	mm	295×295
	Size of mold platen	mm	600x600
Others	Flow	L/min	140
	Oil tank	L	55
	Rated power	kW	15/15			15/20			17/25
	Heating power	kW	7.8			7.1			9.2
	Machine Dimensions	mm	4615x1260x2230			4615x1260x2230			4660x1260x2230

Products Display
Showroom Review
Factory Review

---
