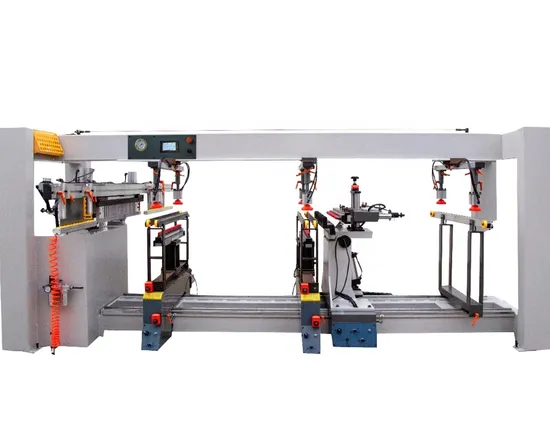

Precision CNC Side Hole Drilling Machine for Wood Projects

Product Description

Product Description
The multi row drilling machine with multiple drill bits that can work together has single-row, three-row, six-row, etc. Also known as a brush drill, a multi-row drill converts the traditional manual drilling action into a mechanical action, which is completed automatically by the machine.The vertical row seat of the multi-row drill is divided into two sections of independent drill seats. The two sections of independent drill seats are pulled apart or closed longitudinally along the Y axis c by the drive of the lead screw nut at the bottom of the drill seat, and a digital counter is used to display the pulling distance to expand the drilling range. The vertical drill seat is driven by a gear rack along the horizontal movement of the x-axis, and the moving distance is calibrated by a digital display. It is equipped with a pneumatic or hydraulic locking system, so that the two sections of the independent drill seats can be rotated 90 degrees independently to achieve the purpose of horizontal drilling L. Quick-change drill bits are used on each row of drill seats of the multi-row drill, which greatly improves the production efficiency of the multi-row drill.
Detailed Photos
The use of brand touch screen, PLC industrial control system, powerful, low failure rate.
Dhe use of imported original brand drilling, motor, linear guide, slider, durable.
Drilling a large range of drilling, all drill with quick connector, convenient and quick.
Imported electrical components, the electrical box cable is neat, ensuring stable operation of the machine.

Product Parameters

model No.	MZ73213
rated power	4.5kw
overall dimensions	3100*2500*1600mm
max working length	2500mm
max working width	2500mm
max working thickness	60mm
net weight	1000kg

Company Profile
Qingdao Zhongding Machinery Co., Ltd. is a leading company of specializing in manufacturing and exporting woodworking machine for more than 20 years. We perform a variety of services to not only supply our clients with top quality woodworking machinery but also adequate maintenance, spare parts and technical advice. We are committed to providing one-stop service for factory production. Replying on the favorable geographical advantages of Qingdao Industrial Park. We have formed a series of panel-type furniture equipment such as table saws, edge banding machines, and CNC routers, as well as solid wood woodworking machines such as: polishing machines, panel machine, press machine etc, which have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East and so on. Bring our products and services for more than 66 countries people and customers. About the payment,I should do the PI for you first,and it has the payment account number of our company, you need to pay a 30% deposit first,when we get the deposit,we will arrange the production of the machine,it takes 20 days. After the production is completed,I will send the pictures of the machine to you,next,you should pay the final payment,and we will arrange the delivery for you.
Certifications

Our Customers

FAQ
1. Do you offer installation?
Our machines are almost assembled before loading in container. It is very easy for installation in your workshop. Video guidance and English manual can be provided freely. Engineers can be sent to service in site if the buyer request.
2. Where can we get replacement parts?Most of the spare parts are ready in stock. They will be sent to the buyer directly from our warehouse with original prices.
3. How long can we get replacement parts?
Common spare parts can be delivered by express within one week. Some parts can be purchased locally.
4. What technical support do you offer?
1. Technical support by phone, email or WhatsApp around the clock.
2. Friendly English version manual and operation video.
3. Engineer available to service machinery overseas.
5. Do you have any machines in our country?Our machines have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East and so on. Bring our products and services for more than 66 countries people and customers.6. Can you customized the machine?
Our machines can be customized made according to buyers' request.
7. What other machine do you offer?
We provide one-stop shop service of woodworking machines for the buyers. Other kinds of woodworking machines, like sliding table saw,CNC beam saw machine, wood drilling machine, CNC router ,vacuum laminating machine, sanding machine, hot press machine and so on can be provided as well.
8. Can you set the system to our language?
Our system supports common languages like Chinese , English , Español , Português , Français , Русский язык , Italiano , Deutsch , Nederlands and so on .

---
