Three/Five/Seven Ply Corrugated Sheet Paperboard Carton Box Cardboard Making Production Line

Product Description

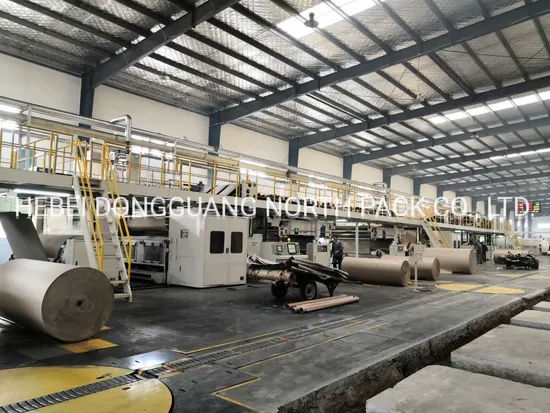

Three/Five/Seven Ply Corrugated Sheet Paperboard Carton Box Cardboard Making Production Line
Cardboard manufacturing machines, Packaging Machinery, Package Machinery, Packaging Corrugated Machine, Package Corrugated Machine, Complete carton box production line, Packing machinery, Packing machine
Usage and feature:
The assembly line for automated mass production, can produce good national standard corrugated cardboard, high efficiency, good quality board to take centralized control, easy operation, easy maintenance, safety and reliability, greatly reduced the labor intensity. The production line using the latest international energy-saving way to provide high temperature heat source Daore You to machine than the steam heating energy savings above 60%, significantly reducing power consumption, effectively reduced the cost of production, is the ideal product for today's economy and medium-sized carton factory.
Main technical parameters and requirements in production line
type:WJ200-1800-II type five layer corrugated paperboard production line:

1	Effective width		1800mm	2		Design produce speed	200m/min
3	Three layer work speed		140-180m/min	4		Five layer work speed	120-150m/min
5	Seven layer work speed		-------------------	6		The highest change single speed	100m/min
7	Longitudinal separation accuracy		±1mm	8		Cross-cutting precision	±1mm
note	Speed the above targets required to achieve:effective width1800mm,Comply with the following standards and ensure the paper's equipment condition 175 ºC heating surface temperature.
	Top paper index	100g/m2--180g/m2 Ring crush index(N.m/g)≥8 (Water containing8-10%)
	Core paper index	80g/m2--160g/m2 Ring crush index(N.m/g)≥5.5 (Water containing8-10%)
	In paper index	90g/m2--160g/m2 Ring crush index(N.m/g)≥6 (Water containing8-10%)
9	Flute combination
10	Steam requirement	The maximum pressure 16kg/cm2			Common pressure10-12kg/cm2			use4000kg/Hr
11	Electricity demand	AC380V 50Hz 3PH			Total power≈300KW			Running Power≈250KW
12	Compressed air	The maximum pressure 9kg/cm2			Common pressure4-8kg/cm2			use1m3/min
13	space	≈Lmin91m*Wmin10m*Hmin5m(The actual drawing to provider to provide audited prevail)

Sample for reference:
This kind of plant machine make the corrugated cardboard is for the carton box make, there can choose single color,,double color, three color, four color and so on, According to different needs can be customized for customers.

Packaging & Shipping
After the machine is finished and running well, it will be coated with anti-rust oil, which makes the machine not easy to rust in the container, and winding film to prevent moisture. Each unit of the machine will be fixed in the container to ensure a stable and safe arrival at the destination.
About us:
NORTH PACK company is a comprehensive company integrating design, R & D, production, sales and service. Our mainly produces corrugated board production line, high-definition high-speed flexo printing machine, automatic carton gluing and stitching machine ,and other corrugated packaging machinery.
NORTH PACK company's products have passed the technical qualification certification, and are exported to more than 70 countries and regions such as Southeast Asia, Eastern Europe and South America. NORTH PACK will always be your trustworthy friend.
Exhibitions:
Our company has actively participated in various domestic and foreign exhibitions in Shanghai, Turkey, Egypt, India and other countries and regions to show our products and services.
Our Services
1. OEM service are available.
2. Trade Manager online, also contact by Email.
3. To solve problems by pictures/videos.
4. Engineers are available service abroad.
PS: Normally our machines are uneasy to broken because of our professional machine making team and strict QC team, we will also send you our manual and video, what you need to do is just learn some basic thing such as machine maintenance.
FAQ
1. Are you a factory or trading company?
We are both a factory and a trading company in this field .
2. What is the terms of payment you accept?
We usually accept the T/T payment, we need 30% of total amount as deposit,
pay the 70% balance before delivery, but we can also accept the L/C.
3. Where is your factory located ? How can I visit there?
Our factory located in Dongguang County, Hebei Province, China., near to the
capital city Beijing and port Tianjin. You can fly to Beijing airport directly and we
will pick you up there.
4. How does your factory do regarding quality control?
Quality is priority. We always regard great importance to quality controlling from the very small thing(even a small screw we will choose the best quality) from the beginning.

---
