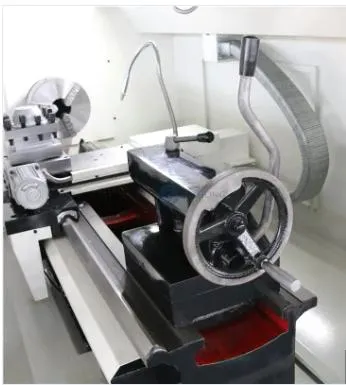

CK61145-1000 series CNC lathe is an economical CNC machining lathe, which can be used for rough machining and finishing machining of mechanical parts. It is simple and reliable in structure, convenient in operation, economical and practical. The control system has comprehensive functions and can meet the needs of many industries. Especially suitable for automobile, machinery and other industries, rotary parts for efficient, high-volume, high-precision processing.
| ITEM | UNIT | CK61145-1000 |
| Swing over bed | mm | 1450 |
| Servo molor | nm | 10,15 |
| Maximum rotation diameter on the tool holder | mm | 1080 |
| X middle drag board width | mm | 420 |
| Width of the upper guide ral of the bed | mm | 720 |
| Spindle end | | ISO(GB)A2-11 |
| Main spindle through-hole diameter | mm | 130 |
| Main spindle through-hole diameter | rpm | 30-84/53-150/125-350/300-835 |
| spindle | | Manual Shift to Fourth Gear |
| The mininum movement unit of the drag plate in the Z drecion | m/min | 0.001 |
| The minimum movement unit in the X-direclion of the drag board | m/min | 0.0005 |
| Z-direciion iravel of the drag plate | mm | 1000 |
| Trailer Xecirection tranvel | mm | 650 |
| X-phase positioning accuracy | mm | 0.015 |
| Z-phase posioning accuracy | mm | 0.02 |
| X-phase repeated positioning aocuracy | mm | 0.01 |
| Repetive posiioning accuracy | mm | 0.01 |
| Maximum processing length | mm | 1000 |
| Rapid mavement speed of dreg board in X/Z direciion | m/min | 6000 |
| Tail socket diameler | mm | 130 |
| Taligiocx sieeve tapered hole | | MT 6# |
| Maximum stroke of tailstock sleeve | mm | 250 |
| Main motor power | kw | 22 |
| Electric tool holder repetitive positioning accuracy | mm | 0.002 |
| Whole machine weight | kg | 6000 |
| Extemal dimensions(mm) | mm | 2350*2350 * 3500 |
