Basic Info.
Application Field
Agriculture, Forestry
Farming Policy
Dry Cultivating Machinery
Operation
Soil Preparation Machinery, Continuous Running Operation
Arbor Configuration
Vertical Shaft
Certification
CE, ISO9001
Linkage
Standard Three Point Mounted
Transport Package
Iron Pallet/Wooden Cases
Specification
Working weight: 195kg
Production Capacity
1500units Per Month
Packaging & Delivery
Package Size
1.00cm * 1.00cm * 1.00cm
Package Gross Weight
1.000kg
Product Description
Product Description

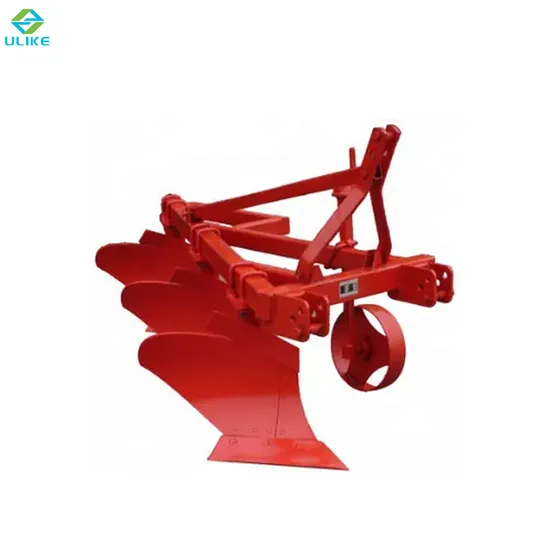

China Top Furrow Plough For Tractor Factory Outlet lL-235/IL-335/IL-435
This series is fully suspended plow plow for soil, sandy loam areafoxglove upland farming. lt has a simple structure, large farmingadaptation range, good quality work, smooth surface, goodpulverizer performance, Ditches and other small features.
Applicable for dry sand soil. With whole hanging, simple structure,wide application, good working, etc.
Product Parameters
Furrow Plough Series Specification |
Type | IL-220 | IL-320 | IL-420 | IL-520 | IL-620 | IL-225 | IL-325 | IL-425 | IL-525 | IL-625 | IL-725 |
Single ploughbody working widt (mm) | 200 | 250 |
Max. working width (mm) | 400 | 600 | 800 | 1000 | 1200 | 500 | 750 | 1000 | 1250 | 1500 | 1750 |
Working depth | 180-250 |
Matched power (hp) | 15-24 | 25-35 | 30-35 | 40-50 | 55-70 | 25-35 | 30-45 | 40-50 | 55-80 | 80-100 | 90-120 |
Weight (kg) | 68 | 122 | 148 | 185 | 230 | 120 | 158 | 195 | 255 | 340 | 390 |
Linkage | Standard three point mounted |
Type | lL-227 | lL-327 | lL-427 | lL-527 | lL-627 | lL-727 | lL-230 | lL-330 | lL-430 | lL-530 | lL-630 |
Single ploughbody working widt (mm) | 270 | 300 |
Max. working width (mm) | 540 | 810 | 1080 | 1350 | 1620 | 1890 | 600 | 900 | 1200 | 1500 | 1800 |
Working depth | 150-240 | 200-350 |
Matched power (hp) | 25-35 | 30-45 | 40-50 | 55-80 | 80-100 | 90-120 | 40-50 | 500-80 | 60-80 | 90-120 | 130-160 |
Weight (kg) | 120 | 158 | 195 | 255 | 340 | 390 | 195 | 260 | 360 | 470 | 590 |
Linkage | Standard three point mounted |
Type | lL-235 | IL-335 | IL-435 | IL-535 | lL-635 |
Single ploughbody working widt (mm) | 350 |
Max. working width (mm) | 700 | 1050 | 1400 | 1750 | 2100 |
Working depth | 200-350 |
Matched power (hp) | 40-50 | 55-80 | 60-80 | 90-120 | 130-160 |
Weight (kg) | 195 | 320 | 410 | 550 | 690 |
Linkage | Standard three point mounted |
Hydranlic Furrow Plough |
Type | 1LYF-325 | 1LYF-425 | 1LYF-525 | 1LYF-625 | 1LYF-725 | 1LYF-327 | 1LYF-427 | 1LYF-527 | 1LYF-627 | 1LYF-727 |
Single ploughbody working widt (mm) | 250 | 270 |
Max. working width (mm) | 750 | 1000 | 1250 | 1500 | 1750 | 810 | 1080 | 1350 | 1620 | 1890 |
Max.Working depth | 150-240 | 150-240 | 150-240 | 150-240 | 150-240 | 150-240 | 150-240 | 150-240 | 150-240 | 150-240 |
Matched power (hp) | 30-50 | 40-80 | 55-90 | 80-120 | 90-140 | 30-50 | 40-80 | 55-90 | 80-120 | 90-140 |
Weight (kg) | 420 | 520 | 720 | 840 | 980 | 420 | 520 | 720 | 840 | 980 |
Linkage | Standard three point mounted |
Type | ILYF-230 | ILYF-330 | ILYF-430 | ILYF-530 | ILYF-630 | ILYF-730 | ILYF-235 | ILYF-335 | ILYF-435 | ILYF-535 | ILYF-635 | ILYF-735 |
Single ploughbody working widt (mm) | 300 | 350 |
Max. working width (mm) | 600 | 900 | 1200 | 1500 | 1800 | 2100 | 700 | 1050 | 1400 | 1750 | 2100 | 2450 |
Max.Working depth | 200-300 | 200-350 |
Matched power (hp) | 40-50 | 50-80 | 60-80 | 90-120 | 130-160 | 160-200 | 40-50 | 50-80 | 80-100 | 120 | 130-155 | 160-200 |
Weight (kg) | 480 | 630 | 880 | 1200 | 1500 | 1850 | 480 | 650 | 880 | 1200 | 1550 | 1900 |
Linkage | Standard three point mounted |
Detailed Photos
Company Profile
Packaging & Shipping
CONTAINER: Put the machine into container, Maybe need disassemble, cheapest freight and fast shipping; After Sales Service
Before-Sale | After-Sale |
1. Airport pickup, Booking hotel. | 1. Visiting the famous scenic spots in zhengzhou. |
2. Visiting our company yard, Enjoying Free test drive. | 2. 1-Year warranty for All the equipments |
3. Different machines to compare with each other. | 3. A lifetime of parts and technical support. |
4. Interpreting mechanical configuration information in detailed. | 4. Fast parts deliver and quick reply for any feedback . |
FAQ
1. How many days it need to deliver farm tractor?
We have more than 15 years experience to produce farm tractor and implements,as usual,we only need 15- 30 days to finsh it.
2. Why should I choose your farm tractor?
We are a professional manufacturer of agricultural machinery for more than 15 years,we attended many national projects and the customers are satisfied with our quality.
3. What are your payment terms?
T/T, L/C, Western Union, Moneygram, Paypal or other.
4. Do you have CE and ISO9001 certification?
Yes,all of our product have passed CE and ISO9001 certification.
5. How long is your product warranty?
Our warranty period is one year.
>>
