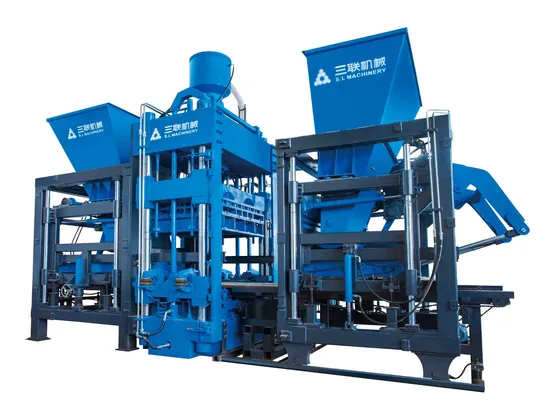

Slst 2000-500t/1500t Fully Automatic Servo Vibration and Compression Integrated Block Brick Machine

Product Description

Product Introduction
The fully automatic servo vibration and compression integrated machine equipment can reach a maximum tonnage of 1500t, mainly targeting new solid waste materials such as slag, soil and other fine powder materials, as well as conventional construction waste, steel slag, furnace slag, coal gangue, industrial tailings, etc. Integrated casting molding, stable and reliable, high tonnage oil cylinder, effectively ensuring product compressive strength, flexural strength, permeability coefficient, frost resistance and other related indicators.
1, In Terms of Raw Materials
2, Main Cylinder
The maximum tonnage of the main oil cylinder can reach 500-1500T. It combines wet and dry processes and has multiple modes to choose from. Simulated dual pressure mode/single pressure vibration mode/pure vibration mode, making the surface and bottom layers of the product connect more firmly and improving the quality of the surface layer. Higher strength, minimizing the impact of deep processing on the surface layer; the main machine adopts casting technology and is integrally formed to ensure that the equipment will not deform or open welding when high tonnage pressure is applied, making it stable and reliable.
3, Main Oil cylinder Lateral Displacement Device
Side shifting device: When making curbstones, the curbstone mould can be added with a side shifting device to meet the requirements for adding surface layers to the sild and vertical surfaces of the product, so that both the side and vertical surfaces of the product can meet the smooth surface requirements.
4, Upper Mould Heating System

Upper mould heating system: Ensure that the upper mould works at a constant temperature of 40". When producing the surface layer, the moisture of the material can be increased without causing mucous membrane, making the strength level higher.
Technical Parameters

Model	SLST1500-500T	SLST1500-1500T
Palet Size(mm)	1400*1200
Max.Molding Area(mm)	1310*1150
Product Height(mm)	45-500
Production Mode	Vibration and compression	Vibration and compression/Pure vibration/Pure hydraulic pressure
Servo Drive Shaft	4
Main Oil Cylinder Tonnage/ T	500	1500
Excitation Force/KN	400
lf the required pallet size or product heights are not listed here, we are happy to make special plans for you.

Production Table

Model	Brick Size	Production(Per mould)	Production(8h one shift)
SLST1500-500T SLST1500-1500T	Hollow Brick 390x190x190mm	15	≈28,000PCS 394m³
	Solid Brick 240x115x53mm	94	≈225,600PCS 330m³
	Paver 200x100x60mm	60	≈86,400PCS 1700m²
Difference between different raw material and ratio and production mode. If a cuber is required,the capacity may be affected.
