Outdoor Indoor Advertising Flexible Panel Cheap Price P3.91, P7.81 Full Color Shop Window Screen Curtain Video Glass Wall Transparent LED Display

Product Description

Full Color P3.9 P7.8 Transparent led display,glass screen shopping advertising
PRODUCT FEATURES
1. Made with panel size 500*1000mm,convenient for different screen size
2. Super slim thickness,the thinnest is only 9mm for the module,the most thickness is 65 mm for panel
3. Lightweight, only with 7.5 kgs for each panel,
4. High transparency, up 55%,good light transmission
5. Ultra power saving, only with 1/3 power consumption of traditional screen
6. Strong and good transparent PC material with long life span
7. Fast installation with U-shaped kayser,easy connecting between panels
8. Seamless splice without peripheral structure
9. Application: widely used for shopmall window, stage background,clear led video wall

P3.9 SMD1921 Transparent LED Glass Screen Specification
Pixel pitch	3.91mm x 7.81mm
Pixel Configuration	1R1G1B
LED component	SMD1921
Size of module	250mm x 250mm
Resolution of module	64x32dots
Size of cabinet	500mm x 1000mm x 65mm
Resolution of cabinet	128x128 dots
Material of Cabinet	Aluminum + PC
Weight of Cabinet	7.5 Kg/pc
Brightness	>2500cd/sq.m
Density	32768dots/sq.m
Best viewing angle	140 /140
Pixel Configuration	1R1G1B
Best viewing distance	3-50M
Maximum power consumption	640W/sq.m
Average power consumption	400W/sq.m
Driving method	1/16 scan
Control method	Synchronization
Gray scale	65536
Colors	256*256*256
Color temperature	3200-9300k
Uniformity	97%
Working voltage	AC110V~240V±10%
Working temperature	-20ºC~+50ºC±10%
Working humidity	10% ~ 90%
MTBF	10,000 hours
Frame frequence	47~63Hz
Refresh frequence	>2880Hz
IP grade	IP42
Life Span	>50,000 hours
Data transafer method	RJ45/DVI
Pratical standard	CCC TUV-CE ETL etc.
Effectivce Communication Distance(without relay)	Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M; Single-mode optic fiber: 10KM
Accepting signal with video processor	PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform	WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development

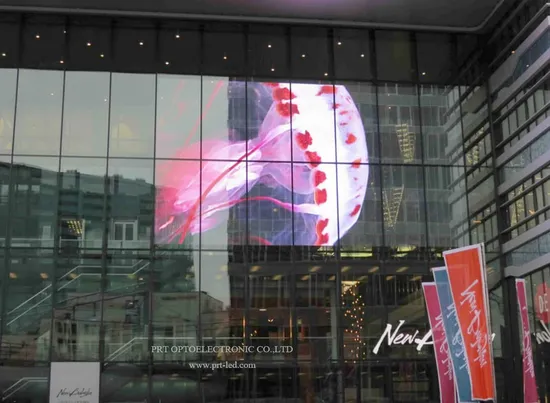

More pictures for good understanding this kind of transparent display panels:

---
