Plastic Bottle Cap Inject/Injection Mould/Moulding Machine/Machinery 110ton

Product Description

Specification of bottle cap injection moulding machine D-RI110
1. Product details:
2. Technical data of D-RI110

Model Item	D-RI110
Screw diameter(mm)	40
Injection pressure(Mpa)	168
Shot weight(PS) (g)	158
Screw L/D ratio	20:1
Screw stroke (mm)	150
Screw speed(r.p.m)	5-180
Injection rate (cm3/s)	120
Plasticizing capacity(g/s)	20.2
Clamping stroke(tons)	110
Mould clamping stroke (mm)	320
Max. daylight opening (mm)	700
Mould thickness (Min.-Max.) (mm)	150-380
Space between tie-bars (mm)	385*350
Hydraulic ejection force (tons)	3.0
Hydraulic ejector stroke (mm)	80
Max. pump pressure(Mpa)	16
Motor power(KW)	11
Heater power(KW)	6.3
Temperature control zones	3+1
Tank capacity (L)	180
Machine dimension(L*W*H)	3850mm*1260mm*1780mm
Machine weight(ton)	3.5

3. SERVO SYSTEM
After receiving the pressure and flow instruction from computer controller, the servo driver will compare it with the actual pressure and flow feedback, and rectify the difference by controlling the rotating speed of the servo motor. In this way, the control of injection molding is not only acurate but also fast, and the repeatabillity of the products high as well.
4. Our Service
4.1 Supply mode: the supplier factory delivery, simple packaging, the supplier agent consignments, the expense is payed by the buyer .

4.2 Terms of payment: the buyer pay 30% of the total payment as the signing of the deposit, the contract comes into effect, pay the balance before shipment .

4.3 Quality assurance: the equipment according to the enterprise standard implementation and mechanical guarantee period is one year, the main electrical appliances for half a year .

4.4 Method of acceptance: equipment processing after the completion of delivery, the buyer sent to the factory acceptance, for commissioning, the buyer to provide raw materials for plastic material .

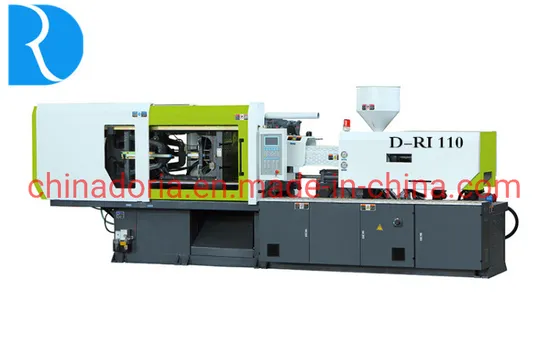

5. Pictures of machine
6. Frequently Asked Questions:
Q: What's the delivery of the machine?
A: It's about 45days.
Q: What is the term of Payment?
A: T/T, L/C, Western Union, PayPal;
The payment usually is 40% T/T in advance, 60% before delivery.
Q: Is it all right to make customer's own brand name?
A: OEM is ok.
Q: Where is your loading port?
A: Ningbo/Shanghai, China or else port as for your request.
Q: Are you a manufacturer or trading company?
A: We are a manufacturer.
7. About us:
Blow moulding machine manufacturer
Semi-automatic 5gallon PET blow moulding machine
Semi-automatic 2cavity PET blow moulding machine
Semi-automatic 3cavity PET blow moulding machine
Semi-automatic 4cavity PET blow moulding machine
Semi-automatic 1cavity PET blow moulding machine for 5-10L
Semi-automatic 2cavity PET blow moulding machine for 3-5L
Taizhou Doria Plastic Equipment Co., Ltd. is located the town of plastic products and mould in China, which is one manufacturer owns special production teams, advanced production equipments and rich production experience.
Based on "Quality is first; Honor for the honest", we always continue development and innovation to witness the maturity of industrial chain of products and improve the quality of products continually. Untiring effort makes the products, especially for 5gallon blow moulding machine, 5gallon PET preform and commodity moulds are widely accepted by our customers.
8. Location:
No.362 Lingxiage Village
Xicheng Street, Huangyan
Taizhou, Zhejiang
China
