Spice Grinder Hammer Mill Crusher Brightsail Cumin Turmeric Coriander Cinnamon Ginger Curry Powder Making Machine

Product Description

Product Description

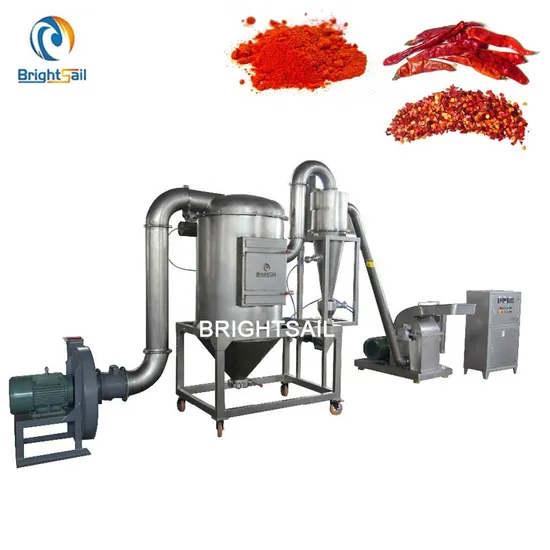

Product Application The machine is made up of three parts:main machine,auxiliary machine and electric control box. It has the properties of wind selection,having no sieve or net,and an even granularity of the processed material.
It uses fixed plate and the relative motion between the activity hammer,making materials impacted and shredded under effect of centrifugal force.
The production process going on continuously,the machine can undertake the grinding of chemical products.food herb,spice,cosmetics,plastic,dyestuff, resin,cotourant,grain,etc.
With hammer type knife, this machine has a very good effect for milling chili.....etc

Model	BS-400	BS-630	BS-880	BS-1000
Production capacity (kg/h)	80-1000	400-1500	800-2000	1000-2500
Output size(mesh)	20-120	20-120	20-120	20-120
Main motor power(KW)	18	30	37	45
Overall size (L*W*H)(mm)	5400*1300*2700	6800*1300*2700	7800*1800*3200	8800*2000*3300

Main Features 1) Simple structure ,easy in installation and maintenance.
2) Adopting advanced world famous brand motor ,electric parts,bearing and operation parts.
3) No dust during production, and dust can be collected in dust collecting box.
4)During production,temperature remains normal, will not get hot. So material's color and nature won't change.
5) It can grind spice and oil material with oil content 10%~20%.
Detailed Images
Crusher part

Unique design,crusher part won't get hot even though working for hours.
It can grind spice and oil material with oil content reach 10%~20%.
Color and nature of material won't change.
Cutter inside mill chamber
Work method: It uses fixed plate and relative motion between the hammer knife, material in the chamber is crushed,shredded under effect of centrifugal force.

Cyclone part

(1) Cyclone can seperate dust from powder(granules)
(2) Rotary valve make powder discharge speed even
Rotary valve is also made of stainless steel
and to clean it and dismantle is convinient.

Pulse Dust Collecting box
(1) Dust is collected inside the dust collecting box.
(2} Inside box, there are many dust collecting bags and the bag frames are also made of stainless steel and can be disassembled easily.
(3) With pulse-jet cleaning, dust can be collected very conviniently.

TO MAKE SURE BETTER QUALITY

1) We use motor from ABB/Siemens/WEG
2) We adopts electrical control parts from Delixi
3) We use bearings from

Our Service
Pre-Sales Service
* Inquiry and consulting support with 24 hours
* Sample testing support.
* View our Factory.
After-Sales Service
* Instructing how to install the machine, insutructing how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery

Packaging
Size	Depends
Weight	Depends
Packaging Details	The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Packaging
Size	20 ft container; 40 ft container
Weight	denpends
Packaging Details	If machine is big, we will fix the machine inside container with steel wires and nails. Machine won't move inside the container.

---
