Vehicle Dyno and Automotive Dynamometer and Chassis Dynamometer for 2WD

Product Description

Product Description The XKDyno load control system uses the latest eddy current power absorption technology, and combined with oureasy-to-use software, any technician can get repeatable, consistent results. The load control software provides technicianswith the ability to control the vehicle's RPi or speed regardless of throttle progress, and the vehicle automatically stays atpre-set Settings through our unique closed-loop software design.
1. 2WD DYNO configuration

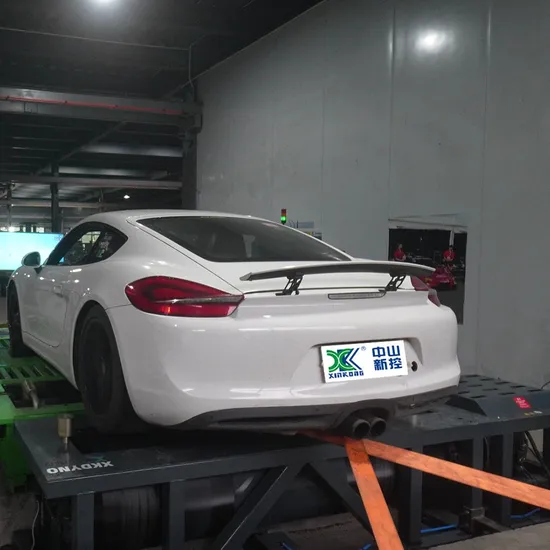

2.Software testing interface:3.On-site case pictures:
Configuration list: 4.1.1 2WD dyno hardware list:

NO.	Device Name	Device Model	Remark	QTY
2WD DYNO
01	DYNO	XKDCG-3T/2 WD		1set

4.1.2 2WD dyno station control system configuration list ( 1 set )

Main components	Model/Specification	QTY
Industrial control computer	Industrial control computer C68-C6 industrial computer, configuration: 8265U+8G+128G+12V7.5A	1 set
Keyboard and mouse		1 set
21-inch LCD monitor		1 set
Industrial control cabinet		1 set
Video signal cable		1 set
Detection system software		1 set
Dynamometer system		1 set
Windows operating system		1 set
Driver Assistant	40-inch LCD TV	1 set
Frequency Converter	7.5kW	1 set
Weather Station		1 set

4.1.3 Basic functions: Constant speed control mode (test vehicle speed can be set); Constant torque control mode (different torque test points can be set); Car speedometer calibration; Car odometer calibration; Accelerated performance testing; Glide performance test; Two-wheel drive, brakes ; The output power of the vehicle driving wheels under rated power conditions; Test power at multiple speed points and display the power-speed curve; Configure Ethernet interface to meet computer networking needs; With anti-drag device, it can test the power loss inside the platform ; Additional functions: OBD, WIFI, weather station, PAD, etc. 4.1.4. Main technical parameters:

Model	XKDCG-3T/2WD
Model / type	2WD, Braked
Rated axle load	3500 kg
Table size	3382*812*736 mm
Absorbed power	600 kw
Maximum braking torque	3300(N.M)
Roller diameter × length	Φ606×2200 mm
Inner distance × outer distance	700×2500 mm
Drum center distance	1
Maximum test speed	300 km/h
Pmax Inertial Mod	1000 hp
Pmax Constant Speed and Road Conditions	1200 hp
Pmax Dynamic Mode from the Weels	2000 hp
Power absorption device	Air-cooled eddy current machine
Air pressure	0.6-0.8 MPa
power supply	380V 50Hz/220V
Installation	Pit/ground installation
