| US$6,000.00-10,000.00 | 1 Piece (MOQ) |

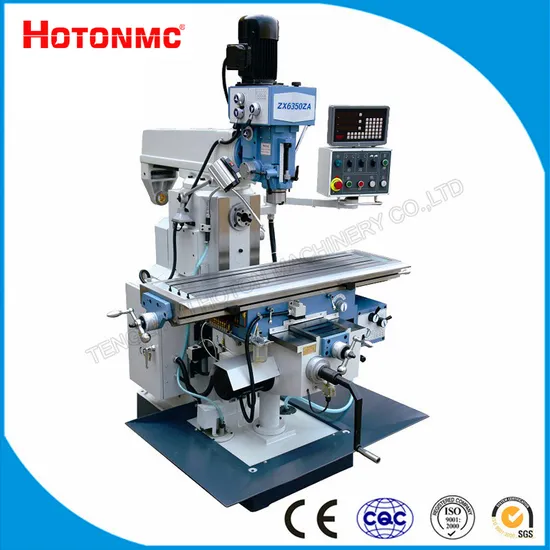

| MODEL | UNIT | ZX6350ZA |
| Spindle taper | MT4/ISO40 | |
| Distance vertical spindle to table | mm | 100-400 |
| Distance horizontal spindle to table | mm | 0~300 |
| Distance spindle to column | mm | 200~550 |
| Spindle seeds range | r/min | (8 steps)60-1500(vertical) (12 steps)40-1300(horizontal) |
| Automatic Feed Series sleeve | mm | 120(vertical) |
| Table size | mm | 1250×320 |
| Table travel | mm | 800/300/300 |
| Distance horizontal spindle to arm | mm | 175 |
| Table feeds range(x/y) | mm/min | 22-555(8 steps)(max.810) |
| T of table (no./width/distance) | mm | 3/14/70 |
| Main motor | kw | 0.85/1.5(vertical);2.2(horizontal) |
| Motor of table power feed | w | 750 |
| Coolant pump motor | w | 40 |
| N.W/G.W. | kg | 1450/1600 |
| Overall dimension | mm | 1700×1480×2150 |
| STANDARD ACCESSORIES | OPTIONAL ACCESSORIES |
| Work light, coolant, drill chuck, mill chuck, spindle arbors, horizontal arbors, wrenches | DRO on X, Y, Z--AXIS. Universal dividing head. Rotary worktable. Clamping kit. |
