| SUIZHOU LISHEN SPECIAL VEHICLE CO.,LTD | ||
| DIMENSIONS | ||

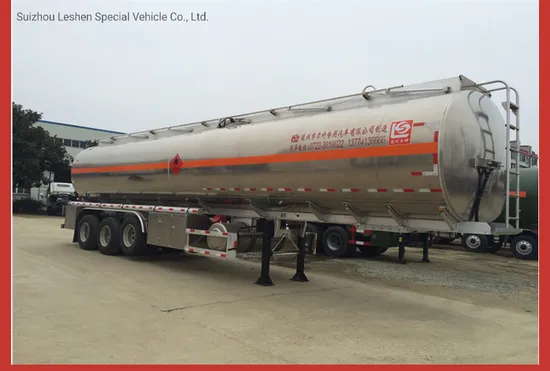

| Model: | SLS9403GYY | |
| Tare Weight | 9,300kg | |
| Payload | 35,000kg (40,000L) | |
| Total Weight | 45,000kg | |
| Overall Length | 11,000mm | |
| Overall Width | 2,500mm | |
| Overall Height | 3,800mm | |
| Wheel Track | 1840mm | |
| Wheel Base | 5600mm+1310+1310mm | |
| Tank special set size | Front :3550*2490*1950mm Rear: 7150*2490*2200mm | |
| Tank Material and deploy | 6mm aluminum, 2 storehouse,5 clapboard, 2 Euro standard Manhole, and 2 ball valve and connect oil pipeline. | |
| STANDARD SPECIFICATION | ||
| Main Frame | Heavy duty and extra durability designed; Opting for high tensile steel | |
| Axle | Three Units of FUWA(brand) 13Ton axle | |
| Suspension | A couple of mechanical 3-axle suspension | |
| Leaf Spring | Six sets of reliable local brand, 7-piece leaf spring,13x90mm | |
| King Pin | one unit of 3.5``(90mm) SAE standard bolted-in kingpin, | |
| Landing Gear | 28Ton manual operation, heavy duty landing gear | |
| Tire | 12 units of 12.00R22.5 tire | |
| Spare Wheel Carrier | Two set of spare wheel carrier | |
| safety System | braking system and air tank Ladder and safety corridors on the tank top | |
| Painting | Sand blasting before painting; two coats of primer, anti corrosion; one coat of finish painting; color is silver or advised by client | |
| Accessory | One tool box with a set of standard trailer tool, two FIREX holder and FIREX | |
| WARRANTY | 18 MONTH OR 30,000KMS | |
| Fob Shanghai | ||
| CIF XXX PORT | ||
