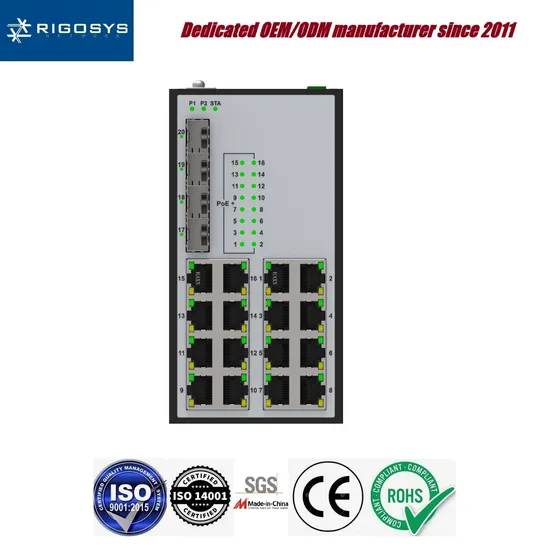

16-Port Full Gigabit POE+ Managed Industrial Ethernet Switch

Product Description

Product Features

16 Gigabit electrical ports support IEEE 802.3af/at PoE , 4 Gigabit SFP optical ports for uplink; Support IEEE802.3af&at PoE standard, the maximum output power of the whole machine is 150W ; Gigabit electrical port 10/100 / 1000M adaptive, full/half duplex, MDI/MDIX adaptive mode; Support multiple redundancy protocols such as ERPS/PVTRING/MSTP/RSTP/STP; Supports management functions such as QoS, VLAN, and IGMP Snooping; Support HTTPS/SSL, SSH, user classification, port isolation, IPSG, arp anti-attack and other security technologies; Supports multiple management methods including CLI, Telnet, Web, and network management software based on SNMPv1/v2c/v3; Support DDM The power supply supports overload protection, reverse connection protection and redundancy protection (LV); IP40 protection level, no fan heat dissipation ; Industrial-grade power supply design, multiple power input options are available to meet users' flexible application needs; -40ºC~75ºC operating temperature, meeting industrial application scenarios . Default guide rail, optional wall mounting.

Switch Specifications
Network Interface
Port Description	RIS 5220 P- 16G T -16 P: Supports 16 10/100/1000Base-TX Ethernet PoE + ports RIS 5220 P- 16G T 4GP-16 P: Supports 16 10/100/1000Base-TX Ethernet PoE + ports, 4 Gigabit SFP slots
Power Supply
Power input	DC power supply: Dual redundant power supply 48VDC (48~57 VDC )
Power consumption	No load: ≤6W@48VDC Full load: ≤15W@48VDC (non-POE power supply); ≤170W@48VDC (POE power supply)
POE output power	≤ 150W
Protect	Support overload protection, reverse connection protection and redundancy protection (LV)
POE Features
POE power supply standard	Support IEEE802.3af/at standard POE power supply
Single port output power	15/30W, IEEE802.3af/at
Power supply pin	1/2(+), 3/6(-); 4-core power supply
Technology
Ethernet Specifications		IEEE 802.3: 10Base-T IEEE 802.3u: 100Base-TX and 100Base-FX IEEE 802.3z: 1000BaseX IEEE 802.3ab: 1000Base-T IEEE 802.3a f: Standard PoE output power 15.4W IEEE 802.3 at: Standard PoE + output power 30W IEEE 802.3x: Flow Control IEEE 802.3ad: LACP (Link Aggregation Control Protocol) IEEE 802.1D: STP ( Spanning Tree Protocol ) IEEE 802.1p: COS (Class of Service) IEEE 802.1Q: VLAN Tagging IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol ) IEEE 802.1s for MSTP (Multiple Spanning Tree Protocol ) IEEE 802.1AB for LLDP Link Layer Discovery Protocol
MAC address table		8K
Priority Queue		8
Jumbo Frames		9712 Bytes
Processing		Store and Forward
Switch Features		Switching delay time: <10μs Switch backplane bandwidth: 56Gbps Number of VLANs: 4094 IGMP multicast groups: 512 Support port speed limit
Safety Features		A CL access control list CPU attack protection ARP Security Configuration IP source attack prevention MAC-based port security mechanism DHCP-Snooping HTTP S / SSH Enhanced Security Protocol RADIUS security authentication Network isolation via VLAN (802.1Q) SNMP v1/v2c/v3 encryption authentication and access control
Software Features		Support IPv4 and IPv6 static unicast routing Support DHCP server/DHCP client Support DHCP snooping Support MSTP/RSTP/STP Support pvtring : switching time < 50ms Support QoS (802.1p/DSCP) traffic priority management Support VLAN (802.1Q) with VLAN tagging Support Q INQ Support IGMP v1/v2 (IGMP snooping) multicast management Support LLDP Support SNMP v1/v2/v3 encryption authentication and access control Support RMON Support ACL Support port isolation Support port speed limit Support port loopback detection Support storm suppression Support port mirroring Support port aggregation (Trunk/LACP) Support port traffic monitoring and traffic statistics Support static MAC binding Support port flow control function Support SNTP network clock Support RTC Support syslog Support TACACS+
Device Management		Support SNMP Support WEB network management (support HTTPS) Support DHCP-client Support user password protection Support command line configuration
Network Redundancy		MSTP/RSTP/STP pvtring ERPS
Warning/monitoring systems		Fault alarm via relay output Record and browse events through Syslog reporting Support SNMP to issue event warning notifications through trap
Fault output		Relay output fault alarm : 1A@24VDC
Console control port		RJ45 port, RS-232 control line, 115200bps-8-N-1
Mechanical Properties
Dimensions (W x H x D)		76 x 146 x 126 mm
Shell		Metal
Cooling method		Fanless design, natural heat dissipation
Protection level		IP40
Installation		Default guide rail, optional wall mount
Weight (g)		≤3KG
Environment
Storage temperature		-40~85 ºC
Operating temperature		-40~75 ºC
Working humidity		5%~95% no condensation
Certification
EMI		FCC Part 15, CISPR (EN55022) class A
EMS		EN61000-4-2 (ESD) EN61000-4-3 (RS) EN61000-4-4 (EFT) EN61000-4-5 (Surge) EN61000-4-6 (CS)	Contact discharge 6 kV, air discharge 8 Kv 10 V/m, 80MHz~ 1 GHz 1 kV for signal terminal, 2 kV for power input terminal Power input: 2kV (line/ground), 1kV (line/line) 10 V, 150 kHz~80 MHz
Shock		IEC60068-2-27
Fall		IEC60068-2-32
Shock		IEC60068-2-6
Security Level		EN 62368-1 (LVD)
Warranty		5 years

Switch Size

RIS5220P-16GT-16P-L5D:
RIS5220P-16GT4GP-16P-L5D:

Product Model
Model		Description
RIS5220P-16GT-16P-L5D		Industrial grade rail-mounted managed switch, 16 10/100/1000Base-TX Ethernet PoE+ ports, wide temperature range -40~+75ºC, DC 48~57 V dual power supply
RIS5220P-16GT4GP-16P-L5D		Industrial grade DIN-rail managed switch, 16 10/100/1000Base-TX Ethernet PoE+ ports, 4 Gigabit SFP slots , wide temperature -40~+75ºC, DC 48~57 V dual power supply

Certifications
Production Process
FAQ:
Q: Are you manufacturer or trading company?
A: Manufacturer, and industry network total solution provider.
Q: Do you accept ODM/OEM?
A: Yes. We provide customized expert service.
Q: What is your minimum order quantity?
A: MOQ is 1 unit.
Q: What's the payment type?
A: T/T.
Q: How about shipping time?
A: Within 3-15 days after receiving full payment , but if you need OEM/ODM, the lead time depends on the specific specifications of the product.
Q: How about after-sales service?
A: 7/24 hours online and respond to user's field device problems in time.
Q: How about the warranty?
A: 5 years.

OEM/ODM or more requirements, welcome to contact us.

---
