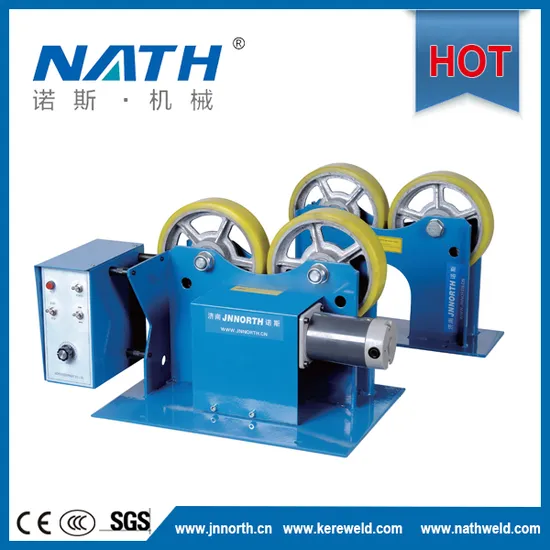

1000kg Welding Toller Rotator Turning Rolls

Product Description

2017 hot sale high quality new 1000kg welding toller rotator Turning Rolls with 1 years guarantee time
Product Description Polyurethane wheel,heat-resistant,wear-resistant, non-skid
Stepless adjustable speed with AC motor, wildly speed adjustable range.
Special wheel design, increasing the applicable diameter of the workpiece.
With compact, simple and light structure, adapts to various working environment.
Equipped with manual control box, the initiation and termination of roller wheel frame are easily taken under controlled.
The manual control box can real-time control the rotating speed, on/off, positive/reverse rotation of roller wheel frame.
Suitable for welding and cutting of the elongated workpiece.

Technical parameter:

REMARK This welding roller rotator has a brief and compact structural design , it is small in size , light weight ,can work in any environment . It suits the cylindric workpieces weighting less than 1000 kg and diameter at 20mm to 700mm.While stepless speed regulation can be achieved within the 1500mm/min, simplicity of operation, can be installed and moved easily. TECHNICAL PARAMETER
MODEL	NHTR-1000
Power Input	1PhaseAC220V,50/60HZ
Turning Capacity	1000kg
Load Capacity	1000kg
Speed Range	1500mm/min
Diameter Range	ф20~700mm
Drive Motor	AC motor
Roller Type	NH,50mm(W)×200mm(ф)
Dimension	520(L)×470(W)×390(H)mm

Packaging & Shipping Packaging Details: ply-wood box
Delivery Detail: 7 days after the deposit

Details:

Our Services 1.Welding&cutting technology and process solutions.
2.Welding&cutting technology equipments selection and configuration of the overall guidance.
3.Factory automatic solutions for welding&cutting.
4.Provide a complete Welding&cutting equipment and auxiliary equipment.
5.All-round service for pre-sale and after-sale.

---
