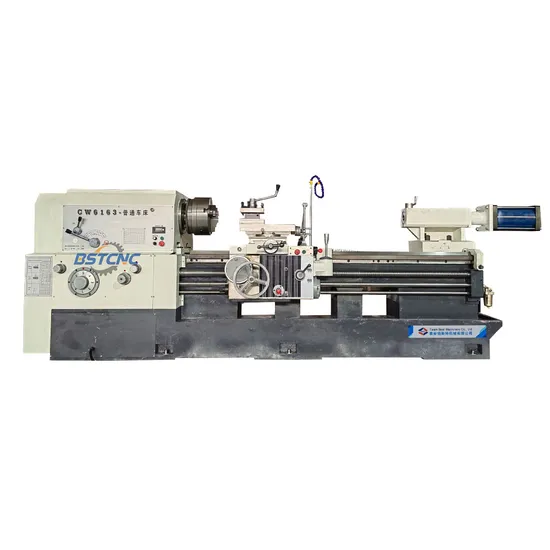

Heavy Duty Large Horizontal Lathe Manual Lathe Machine for Steel Cw6163

US$15,600.00-16,500.00 1 Piece (MOQ)

Basic Info.

Model NO.
CW6163
Processing Accessory
Metel
Guide Rail
Other
Tool Holder
4 Station Manual Tool Post
Power Source
Electric
Controlling Mode
System
Automatic Grade
Manual
Setting Mode
Other
Precision
High Precision
Condition
New
Product Name
Cw6163 Manual Lathe
Model
Cw6163
Max. Diameter Swing Over Bed
Φ630 mm
Max. Diameter Swing Over Cross Slide
Φ350 mm
Distance Between Centers
1500/2000/3000/4000/5000/6000 mm
Maximum Machining Length
1250 mm
Width of Bed Way
550 mm
Max. Load Capacity
2.5 T
Spindle Bore
Φ105 mm
Spindle Nose
C11
Spindle Taper Hole
(Metric):120/1:20
Spindle Motor
11 Kw
Spindle Speed Steps
Three Gears Frequency Conversion
Dimensions
3600X1600X1400 mm
Weight
4200 Kg
Transport Package
Wooden Case
Trademark
BST
Origin
China
HS Code
8458110090

Packaging & Delivery

Package Size
360.00cm * 160.00cm * 140.00cm
Package Gross Weight
4200.000kg

Product Description

Product Description
UNIVERSAL ENGINE LATHE APPLICATION
This series lathe is universal metal machining equipment, mainly used for turning the internal and external cylindrical surface,conical surface and other rotating surfaces, as well as turning internal and external pipe threads such as metric , inch,module and DP threads etc, Meanwhile this series lathe is also used for drilling and grooving with metal material workpieces such as cast iron, steel and non-ferrous metals.
Integral machine bed adopts high strength iron to realize high rigidity and precision;
Ultrasonic frequency quenched guide-ways are hard enough for good wear-resistance;
Headstock gears are hardened and ground to achieve high precision and low noise.
SPECIFICATION OF CONVENTIONAL LATHE MACHINE
ITEMS UNIT CW6163
Capacity Max. diameter swing over bed mm Φ630
Max. diameter swing over cross slide mm Φ350
Distance between centers mm 1500/2000/3000/4000/5000/6000
Maximum machining length mm 1250
Width of bed way mm 550
Max. load capacity T 2.5
Spindle Spindle bore mm Φ105
Spindle nose C11
Spindle taper hole (Metric):120/1:20
Spindle motor KW 11
Spindle speed steps - Three gears frequency conversion
Spindle speed range rpm (L):10-200/(M):180-500/(H):480-1200
Turret Max.traverse of the turret mm 200
Turret type - Manual 4 position
Tool shank size mm 32×32
Feed Traverse of cross slide mm 320
Z axis feed grade /range mm 32/0.095-1.4
X axis feed grade/range mm 32/0.042-0.7
Carriage raid traverse speed Mm/min 3740
Cross slid raid traverse speed mm/min 1870
Metric thead grade/range mm 22/1-15mm
Inch thread grade/range T.P.I. 26/14-1
Tailstock Tailstock quill diameter mm Φ100
Tailstock quill taper - Morse NO.5/6
Tailstock quill travel mm 250
Dimensions Width x Height mm 3600X1600×1400
Weight Net weight KG 4200

Standard Configuration
- 3 jaws manual chuck (320mm );
-4 station manual tool post ;
-Manual tailstock ;
-Whole casting bed ;
