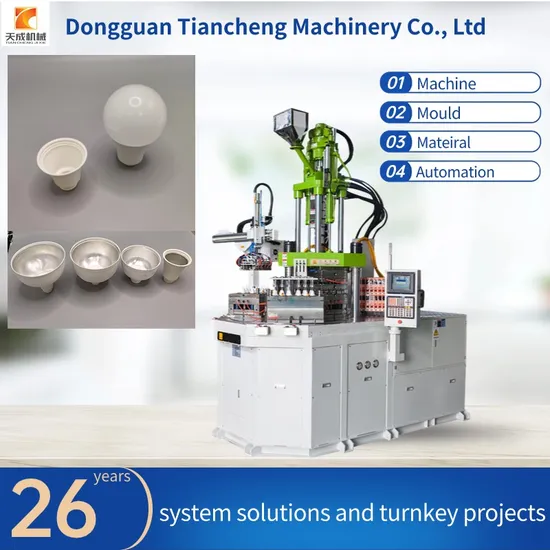

160T/220T/Fully Automatic Injection Molding Machine for LED Lamp Cup Introducing the 160T/220T fully automatic injection molding machine for LED lamp cups by Dongguan Tiancheng Machinery Co., Ltd. This tube head injection machine offers online after-sales service, a 1-year warranty, and is designed specifically for LED lamp cup production.
| Brand Name | Tiancheng | | Style | VERTICAL |
| Condition | New | | Model NO. | TC-1600-3R |
| Screw Diameter (MM) | 40--42 | | Max.Hydraulic Pressure(Kg/cm3) | 140 |
| Maximum injection Pressure (Kg/cm2) | 2268--1835 | | Pump Output (L/min) | 68 |
| Theoretical Shot Volume (Cm3) | 226--254 | | Oil Tank Capacity (L) | 600 |
| Maximum Shot Weight (G/oz) | 202/7.2--226/8.0 | | Cooling Water Consumption(L/H) | 800-1000 |
| Injection Rate (Cm3/sec) | 220-260 | | Electric Power (KW) | 22 |
| Screw Speed (R/Min) | 0--240 | | Total capacitance (KW) | 13.8 |
| Screw Rate (MM) | 220 | | Total Wattage (KW) | / |
| Nozzle Retraction Stroke (MM) | 330 | | Machine Specification(M) | 2.9*2.35*3.6 |
| Clamping Force (Ton) | 160 | | Weight of Machine (KG) | 8500 |
| Opening Force (Ton) | 13 | | Plastic Processed | PP, ABS, FRPP/PVC, PE, ABS/PP, PE/PP |
| Platen Size (MM) | 1384 | | After-sales Service Provided
| Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support |
| Distance Between Tie-Bere (MM) | / | | After Warranty Service
| Video technical support, Online support, Spare parts, Field maintenance and repair service |
| minimum Mold Thickness (MM) | 300/400 | | Warranty | 1 year |
| Opening Stroke (MM) | 300 | | Applicable Industries | Manufacturing Plant, Construction works , Energy & Mining, Other |
| Max-Distance opening mold (MM) | 600/700 | | | |
| Max.Mold Size | 550*500 | | | |
| Ejector Force (Ton) | 4.6 | | | |
| Ejector Stoke (MM) | / | | | |
| Q1: Are you a trading company or a manufacturer? |
| A1: Factory we are, all the machine are made by ourselves. Besides, you can get the customize service with your requirements |
| Q2: What's your warranty for the machine? |
| A2: One Year Warranty(all the machine parts can be replaced within one year free of charge, not including the manmade broke), life-time maintenance. |
| Q3: What's your Delivery Time? |
| A3: Usually it is 3-5 days if the machine is in stock; If not, the delivery time is 10-25 days according to your required quantity and our busy season. |
| Q4: Why choose TianCheng Machinery Co., Ltd.? |
| A4: "Tiancheng Machinery, we sincere, you succeed!" are the driving force for our company to moving forwards. We will devote every efforts to do the best level machine and service. |
