Cj19 (16) Series Switching Capacitor Contactor

Product Description

Oversize
CJ19(16)- 25, 32, 43, 63, 85, 95 switching capacitor contactor, dedicated to switching low voltage shunt capacitors, widely used in AC
SOHz, voltage to 380V reactive power compensation equipment, the contactor is equipped with a surge suppression device, which can effectively reduce the impact of the closing inrush current on the capacitor and reduce the operating overvoltage at the moment of disconnection, which can replace the original method-only contactor The switching device composed of three current-limiting reactors is small in size, light in weight, strong in making and breaking capacity, and easy to install.

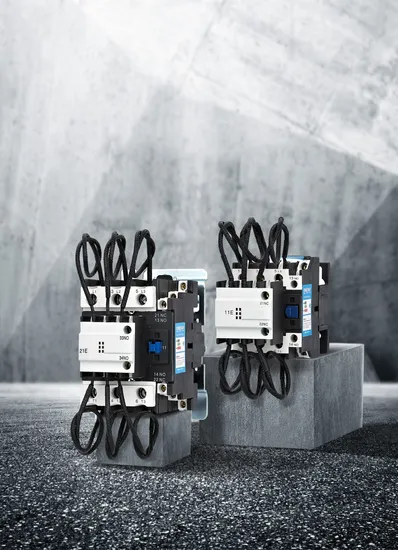

Normal working conditions and installation conditions Ambient air temperature: -25°~ +40 ° Altitude: :(2000m Environmental conditions: No harmful gas and steam, no conductive or explosive dust, no severe mechanical vibration The inclination of the installation surface and the vertical surface is not more than 50 Pollution degree: Level 3 Product Picture
The main parameters

PROJECT	SPECIFICATION	25	32	43	63	85	95
Controllable capacitor	230V	6	9	10	15	20	32
capacity(kvar)	400V	12	18	20	30	40	50
Rated insulation voltage (V)		500	500	500	500	500	500
Rated working voltage(V)		380	380	380	380	380	380
Conventional heating current(A)		25	32	43	63	85	95
AC-6 b Rated working current(A)		17	26	29	43	58	72
Peak inrush current Capacitor rated current		201e	201e	201e	201e	201e	201e
Control coil voltage{V)		220/380	220/ 380	220/380	220/380	220/380	220/380
Insulation grade of the coil		Class B	Class B	Class B	Class B	Class B	Class B
Conventional heating current of auxiliary contact(A)		6	6	6	10	10	10
Operating frequency( Times / h)		120	120	120	120	120	120
Electric life(Times)		10 5	1 05	1 05	1 05	1 05	1 05
Mechanical life(Times)		10 '	10 '	10 '	10 '	10 6	10 '

FAQ Q 1. what's the payment terms?
A. We accept LC, T/T, D/P,Western Union PayPal. If others, we can discuss.
Q 2. how's the delivery time ?
A. usually it will take about 30 days after order confirmed.
Q 3. tell me the standard of package?
A. For the small capacity, we will use carton, but for big capacity, we should use strong wooden case for protection.
Q 4.Could you offer Form A or C/O ?
A. No problem. We can prepare relative documents to origin affairs office or other office to apply for related certificates.
Q 5.Would you accept to use our logo ?
A.If good quantity, it absolute no problem to do OEM.
Q 6.We want to know month capacity.
A. It depends on which model.For example for relay type capacity , month capacity can reach near 5000pcs/month while big capacity near 2000pcs/month.
Q 7.Where is your market?
A. Our products are popular in North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western European so on. Some of them are our regular customers and some of them are developing. We hope you can join us and make mutual benefit from our cooperation.

---
