ASTM D2809 Cavitation Corrosion and Erosion-Corrosion Characteristics of Aluminum Pumps With Engine Coolants Tester

Product Details

Product Description

Product Description

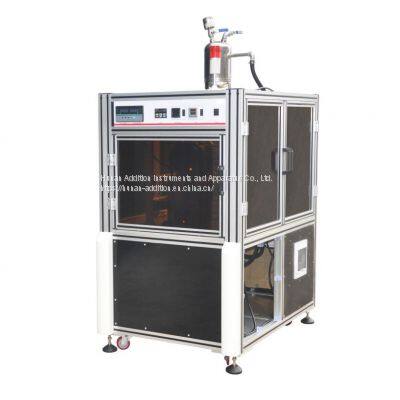

Cavitation Corrosion and Erosion-Corrosion Characteristics of Aluminum Pumps With Engine Coolants Tester ASTM D2809 Product model: JF0087
Product Introduction
Test method for this instrument: Use a standard aluminum car water pump to pump the sample, run it under certain conditions for 100h, then check the water pump to determine the degree of cavitation corrosion and rate it according to the grading system table. This instrument is suitable for testing engine coolant and engine coolant concentrate.
Technical Parameter
1. Applicable standard: ASTM D2809 SH/T0087
2. Test Pump: Standard Aluminum Buick Pump
3. Heating method: electric heating rod heating
4. Pump body speed: 0～4600±100r/min
5. Temperature control mode: digital display PID temperature controller
6. Temperature control range: 7. Timing method: digital display timer
8. Working pressure: 103kpa pressure gauge display
9. Pressure control: regulating valve adjustment
10. Speed control: frequency conversion governor
11. Working power supply: AC220V/50HZ
Performance Characteristics
1. The test pump of General Motors Company is adopted, which meets the requirements of ASTM standard;
2. Imported variable frequency governor to control pump speed: 4600±100r/min;
3. Rod-type electric heater, stainless steel material, heating evenly;
4. There is a pressure gauge and a thermometer jack on the storage tank to correct the temperature;
5. Stainless steel expansion tank;
6. Four regulators control the liquid flow;
7. All stainless steel

---
