Xf Low Price 5 Inch DN140 Electric Control Solenoid Valve Water Irrigation Pilot Hydraulic Smart Agriculture AC DC

Product Description

DN125 140mm 5 inch Double Chamber Drip Irrigation Systems Farm Agricultural Water Latch Solenoid Valve 12V-40VDC

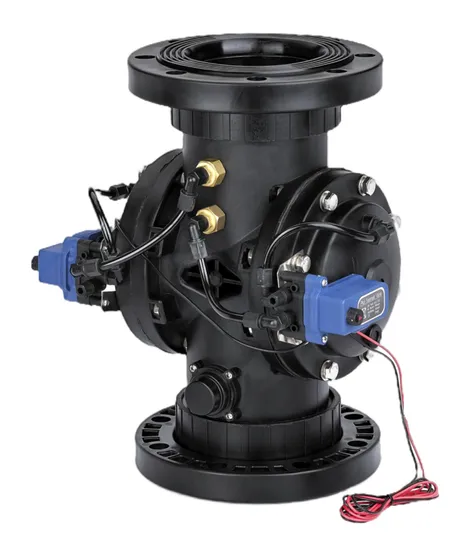

1.Product Exterior View
2.Normal Technical Feature & Parameter
Plastic Irrigation Solenoid Valve with Hydraulic Control > Installed with main hydraulic valve and our Plus Solenoid Valve to be open/close controlling valve, distance operation by electrical signal from controller.
> Y Type Designed, Big Channel and large discharge, small head lose, Response sensitivity.
> Flexible inductive diaphragm and guide of valve core fixed well, corrosion resistance and no deformation.
> Easy to operate as hidraulic controling, save effort to close or open and convenient maintenance.
> Produced by Reinforced plastic material with excellent hydraulic and mechanical function, use for long time.

Operated Voltage	3vdc~12vdc
Pulse Width	200ms~500ms
Port Size	5 inch DN125(φ140mm) Double Chamber Type
Flow Rate	0~200mm³/h (Economic Flow: 100m³,water flow loss smallest)
Materials	Nylon Plastic Black
Adwantages	Sediment resistance (very little remaining in valve)
Functions	Agricultural /Garden field water irrigation ; water pressure/flow/ valve's open/off data record
Life Time	50000 ~ 100000 cycles

3.Advantage of our Plus Solenoid Valve:
> Inside actuator motor designed for converting electric to hydraulic command which is essential part for Hydraulic controlling valve.
> Designed with diaphragmin inside which makes controlling main part separate from water passageways for long service life.
> Width water passageways designed for short reaction of controlling valve and anti-clogging.
> Manual controlling knob for CLOSE-AUTO-OPEN operation.
4.Technical:
·Size: 5" (Dn 125).
·Electric Voltage: 3VDC~12VDC Latching
·Connection: Threaded / Flange.
·Working Pressure : 0~8 Bar
·Max pressure: 10Bar / 145Psi.
·Highest working temperature: 0~75°C

5.Material:
Body, Cover and Plug: Glass-Filled Nylon
Diaphragm: EPDM
Seals: EPDM
Spring: Stainless Steel
Bolts: Stainless Steel
Connectors: Glass-Filled Nylon
6.Flow Chart:
7.Applications
8.Packing&Shipping
Packing:
Transparent plastic bag + white small box + neutral carton + pallet
Custom packaging are available, XingFeng brand packaging are also available
Shipping:
Export port:Ningbo or Shanghai, China
Shipping way:By sea, by air, by courier
Delivery time:3 days to 30 days depends on actual orders.9.Company Profile
Yue Xingfeng Electronics Factory is a 2002 years intelligent sanitary ware manufacturingelectromagnetic valve of mediumsized enterprises,Professiona sanitary ware forhousehold electrical appliances, induction sanitary ware, intelligence, form a completeset of automatic control industry.Factory is located in yueqing city east industrial zone.with perfect r&d, manufacturing,marketing and logistics management system.Xing feng and insist on techonlogical innovation has been followed, relying on the scaleand professional brand service, constantly bigger and stronger,Products are mainlydicided into:induction series, intelligent toilet series intelligent wei yu of form a completeset of solenoid valve.The material is divided into brass, plastic series.Xing feng electronic through continuous efforts, innovation, and strive to industry leadingenterprises, let each use of establishing product satisfaction, is our never-ending pursuitof goals.
10.FAQ
1.PackingTransparent plastic bag + white small box + neutral carton + palletCustom packaging are available, XingFeng brand packaging are also available 2.Shipping Export port: Ningbo or Shanghai, ChinaShipping way: by sea, by air, by courierDelivery time 3 days to 30 days depends on actual orders. 3.Payment TermsWe accept T/T, L/C, Paypal, western union,etc. 4.Samples PolicyFor regular fittings below 2 pcs, free samples against your courier account or you pick up from us.For custom items, we will discuss by email or by phone chat. 5.Return PolicyWe assure you 3 year policy after shipment. If there is any problem during this period, please contact us for support.

---
