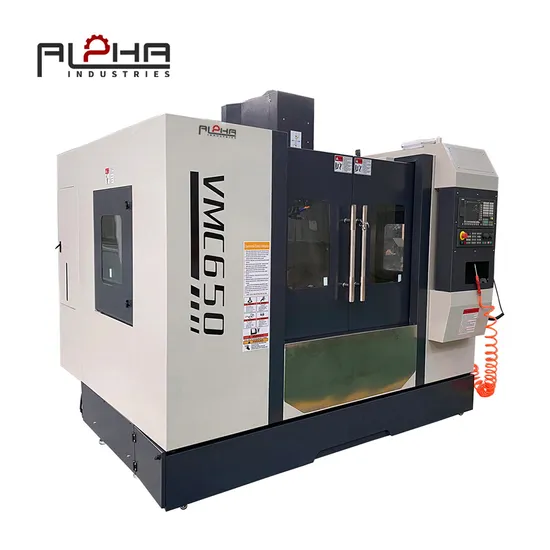

High Precision Equipment Durable and Sturdy Vmc650 Vertical CNC Machining Center

Product Description

Product Parameters

Model No.		VMC650
Travel	X-axis	650mm
	Y-axis	450mm
	Z-axis	500mm
	Spindle nose to table surface	120-620mm
	Spindle center to column surface	500mm
Worktable	Table size	900×400mm
	Max.loading	400kg
	T-slot width	18
	T-slot quantity	3
Spindle	Spindle taper	BT40
	Spindle speed	8000rpm
	Spindle motor	5.5kw
Tool	Max.tool dia.	φ80/φ100mm
	Max.tool length	150mm
	Max.tool weight	7kg
Rapid movement	X,Y axis rapid feed	20000mm
	Z axis rapid feed	18000mm
	Cutting feed	1-10000mm/min
Accuracy	Position accuracy	± 0.01mm
	Repeat positioning accuracy	± 0.005/300mm

Motor

XYZ axis AC servo motor(torque N.m 11/11/15)
Power device	Power form	3-phase AC 380V±10% 50Hz±10%
	Capacity	10KVA
Coolant system	Capacity	200L
	Cooling pump power	120W
	Cooling pump flow	50L/min
	Rated head	10m
Air supply	Using air pressure	0.6MPa
Dimension and weight	Dimensions	2300×2200×2400mm
	Net weight	3800Kg

Accessories

No.	Name	Specification or marking	Quantity	Remarks
1	Adjustable block and bolt	Created by self	6 sets
2	Milling chuck	BT40	1 set
3	Allen wrench		1 set

List of Main Purchased Parts

No.	Name	Specification		Quantity	Remarks
1	Spindle unit	BT40 (φ120)	Taiwan VOLIS	1 set	Standard accessories
2	Pressurized knife cylinder	4500	Taiwan	1set	Standard accessories
3	Disc magazine	BT40-16T	Taiwan Desu	1set	Standard accessories
4	X direction ball screw	4010/C3	Jiangsu	1pair	Standard accessories
			QIJIAN
5	Y direction ball screw	4010 /C3	Jiangsu	1pair	Standard accessories
			QIJIAN
6	Z direction ball screw	4010/C3	Jiangsu	1pair	Standard accessories
			QIJIAN
7	Screw bearing		NSK	15	Standard accessories
8	Coupling		Import	3	Standard accessories
9	Coolant pump		Domestic	1	Standard accessories
10	Lubrication system	Ruiqing	Domestic	1set	Standard accessories
11	Pneumatic system		Yadeke	1set	Standard accessories
12	X-direction roller liner rail	35mm	Taiwan HIWIN	1pair	Standard accessories
13	Y-direction roller liner rail	35mm	Taiwan HIWIN	1pair	Standard accessories
14	Z-direction roller liner rail	35mm	Taiwan HIWIN	1pair	Standard accessories

Standard Accessories

Spindle unit 8000rpm	GSK 218 control system	Rigid tapping
Jiangsu qijian screw	Adjustable block	Move the hand vein
Centralized automatic oil lubrication	External cooling system and water tank	Simple oil-water separation device
Full protection sheet metal shield and rail shield	Taiwan HIWIN linear guideway	Tubular work lights, warning lights
16tools ATC from Taiwan	Spindle servo motor:
	speed 8000rpm,power5.5Kw,torque25.8Nm

Optional Accessories

System:Siemens 808D/828D

Fanuc 0i-mf

Mitsubishi M80B

Company Profile
Certifications
Exhibition
Packaging & Shipping
FAQ
FAQs
Q1: How is the warranty?
A1: Warranty time is 15 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: We have stock for popular models, we produce according to order.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 40 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services under Alpha brand.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.

---
