E-Orbital Pipe Cutting Machine

Product Description

Pipe & Flange | Cutting | Beveling | Facing | Drilling | Boring

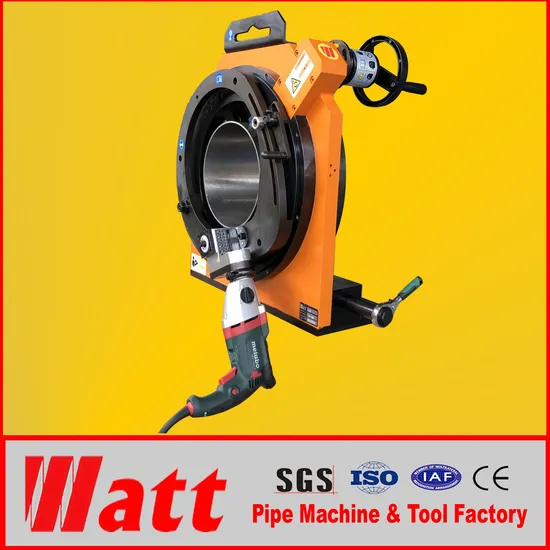

E-ORBITAL PIPE CUTTING MACHINE
OVERVIEW
orbital pipe cutting machine is the best choice for stainless steel thin-wall pipe cutting. This machine adopts Metabo motor drive to ensure strong power. It is necessary equipment for pipe welding prep. Optimize design, save space, operate simply, install quickly." Self-centering "type pipe clamping device,Saw blade cutting head can cut off the pipe by rotating around the steel pipe once a week. The end face is absolutely vertical without burrs, and the steel pipe is not deform, providing quality assurance for the welding of steel pipes. Cutable materials: carbon steel, alloy steel, non-ferrous metals, engineering plastics, etc., widely used in semiconductor, electronics, beer, pharmaceuticals, biotechnology, beverages, dairy, pressure vessels, chemical, oil and gas, ships, water treatment and other industries Processing.

FEATURES
1,Quickly install the blade
2,Cold cutting ,don't influence the pipe's material
3,Vertical incision without deformation, burr-free end surface
4,Deformable clamping device, automatic centering, quick clamping of the pipe
5,option beveling saw for pipe cutting and beveling
6,Unique orbital cutting, thin wall tube cutting best equipment
7,High safety, stationary pipe, cutting head rotation completed
8,Dry cutting, kept cleaning, be welded directly after cutting
9,Saw blade compatible with AXXAIR, +GF+, DCS and other brand pipe cutting machine

CAPABILTY
1,Pipe cut off
2,Pipe beveling
3,Cutting and beveling

SPECIFICATION

Model	Range 0D(mm)	Wallthickness(mm)		Motor	Feed
		CS	SS
E4	Φ15-120	≤12mm	≤4mm	Metabo, 220-230V, 50-60HZ, 1Phase 1.1KW	Manual
E6	Φ30-170	≤12mm	≤4mm
E9	Φ60-225	≤12mm	≤4mm
E13	Φ140-330	≤12mm	≤4mm
E16	Φ215-420	≤12mm	≤4mm
E20	Φ315-520	≤12mm	≤4mm
E24	Φ346-630	≤12mm	≤4mm
E30	Φ486-760	≤12mm	≤4mm

Machine body is optional: alloy steel or aluminium alloy.

POWER SUPPLIES
Sawblade drive motor:
Brand: Metabo
ElectricRequirements: 220-230V, 50-60Hz, 1P
Power:1.3KW
Speed: 6-speed adjustable

TOOLING
Material: M42
Standard:cuttingblades
Optional:bevelingsaw blade 30°, 37°, 45°

Standard: cutting blade	Optional: bevelingsaw blade

---
