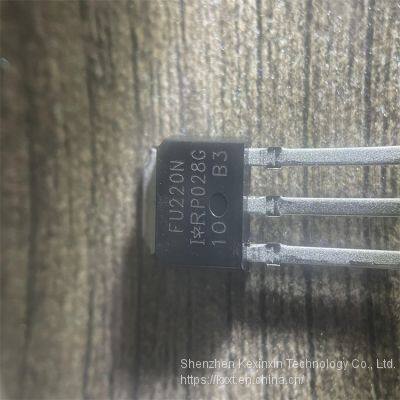

IRFU220NPBF Infineon Technologies MOSFET MOSFT 200V 5A 600mOhm 15nC

Product Details

Product Description

Product Description
Factory
Mfr. #:
IRFU220NPBF
Manufacturer: Infineon
Product Category: MOSFET
RoHS: Details
Technology: Si
Mounting Style: Through Hole
Package / Case: TO-251-3
Transistor Polarity: N-Channel
Number of Channels: 1 Channel
Vds - Drain-Source Breakdown Voltage: 200 V
Id - Continuous Drain Current: 5 A
Rds On - Drain-Source Resistance: 600 mOhms
Vgs - Gate-Source Voltage: - 20 V, + 20 V
Vgs th - Gate-Source Threshold Voltage: 1.8 V
Qg - Gate Charge: 15 nC
Minimum Operating Temperature: - 55 C
Maximum Operating Temperature: + 175 C
Pd - Power Dissipation: 43 W
Channel Mode: Enhancement
Packaging: Tube
Brand: Infineon Technologies
Configuration: Single
Fall Time: 12 ns
Forward Transconductance - Min: 2.6 S
Height: 6.22 mm
Length: 6.73 mm
Product Type: MOSFET
Rise Time: 11 ns
factory pack quantiy: 3000
Subcategory: MOSFETs
Transistor Type: 1 N-Channel
Typical Turn-Off Delay Time: 20 ns
Typical Turn-On Delay Time: 6.4 ns
Width: 2.38 mm
Unit Weight: 0.011993 oz

---
