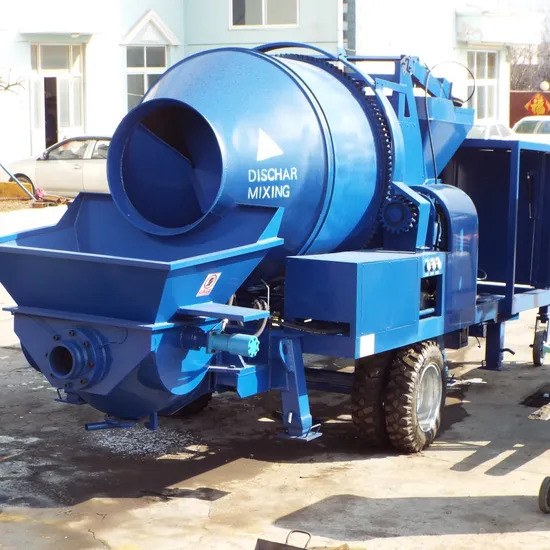

Diesel Concrete Mixer Pump 40m3/H Capacity with High Quality Engine

Product Description

Product Description
Electric Control System Compared with domestic product, the electric control system is simplest, the element quantity is fewest and its reliability is highest. The wire remote equipment is convenient for operation far away. Adopting proximity switch in hydraulic cylinder can realize changing direction with non-touch, which ensures that the direction can be changed reliably. Mechanical System The design of hopper and S valve and so on adopt I-DEAS software to caculate, the hopper and S valve have good rigidity to avoid the phenomenon of hopper distortion and S valve breakage. The agitator have unique form, which separates the hydraulic motor from agitator bearing pedestal.At the same time, adopting large displacement motor ensures that the agitator moment is big enough. Make sure the pumping is good and decline the phenomenon of pipe jam, the spectacles wear plate and cutting ring should be useed in lower abrasion. Xinsai's spectacles wear plate and cutting ring use high wear material, making the components' life prolonged greatly. Lubrication System The hydraulic circuit will take high oil into double distributor,and then the lubricating part can obtain hydraulic oil.It ensures the lubrication of the concrete cylinder's piston and other parts and prolongs the life of piston and other sealings. Cooling System The radiator equipment makes the working oil temperature of hydraulic system below 70ºC and makes the machine in normal status. Hydraulic System Double open hydraulic loops (pumping hydraulic circuit is independent of distributing hydraulic circuit) with two pumps, makes the whole hydraulic system much simpler. The reliability of the whole system is also much higher as well as the components' life is prolonged greatly. This is convenient for judgeing and removing trouble. Large valve changing direction, makes the main pumping loop quick response, small leakage, good stability,high reliability and high resist contaminative capability. Hydraulic system has safe relief protection,at the same time,when the system pressure is over, the main oil pump cutting device makes itself be protected reliably. Distributing hydraulic circuit adopts constant pressure pump, which can provide strong distributing pressure and economic energy control. Cone sealing of all pipes make the pipe joints seal reliably. The high-low pressure switch adopting cartridge valve of reduces the trouble of dismantling and installing the oil pipe. Adopt emulsification technology of initiative and passivity recovery integration.

	Items	JBS40-10-82R
Whole performance	Max. theo. pumping capacity	40
	Max. theo. mixing capacity	15
	Max. concrete pumping pressure	10 Mpa
	Distribution valve type	S Valve
	Concrete cylinder (diameter*stroke)	Ф180*1000
	Hopper capacity	400 L
	Outlet diameter	Ф150 mm
Power System	Diesel engine brand	Weichai
	Diesel engine power	82 kw
	Rated speed	2200 r/min
Hydraulic system	Circuit type	Open circuit
	Pumping system pressure	32 Mpa
	Mixing system pressure	6-8 Mpa
	Oil tank capacity	350 L
Other parameters	Max.conveying distance (vertical/level)	150/600 m
	Max. aggregate diameter	40 mm
	Inside diameter of delivering pipe	Ф125 mm
	Overall dimensions (L*W*H)	6000*2300*3150 mm
	Total weight	4500 kg

Detailed Photos

Name: diesel engine
Brand: Weichai
Original: China
The best diesel engine here in China. It can ensure the power supply of the concrete mixer pump.


Name: Hydraulic pump Brand: FLUTEK Kawasaki Original: Korea Hydraulic pump is one of the most important parts of concrete mixer pump, because it generates hydraulic pressure to deliver concrete to the job site.
Name: Hydraulic oil pipe Brand: Manuli Original: Italy The working hydraulic oil pressure is 10 Mpa, so the hydraulic oil pipes must be very good quality to sustain the very high hydraulic oil pressure.
Name: PLC Brand: OMRON Original: Japan We all know the importance of PLC to a machine. Even all parts of the machine is good, but the PLC quality is poor, the machine can not work well. OMRON PLC is one of the best in the world.
Packaging & Shipping
Our Service
Pre-sale Service
1 Answering customers' questions, helping customers choose the most suitable machines;
2.Making design drawings as per customers' requirements; 3. Providing quotations.
In-sale Service
1. Strictly control all procedures from raw materials sourcing to pre-assembly to ensure product quality;
2. Regularly updating production progress to clients;
3. After the production is completed, pre-assembly and test running will be carried out to make sure our machine works well;
4. Proper packing to minimize the risk that the machines are damaged during transportation;
5. Foundation drawing will be provided for clients to make the foundation in advance.
After-sale Service
1. Providing 7 * 24 hours online after-sales service every week
2. Providing related certificates, customs clearance documents, operation and maintenance instructions, installation videos, etc.
3. Arranging engineers to go to the client's job site. The engineers will help clients with the machine installation, machine test-running, and operators' training, etc.
4. Spare parts supply;
5. Job site visiting every year.
