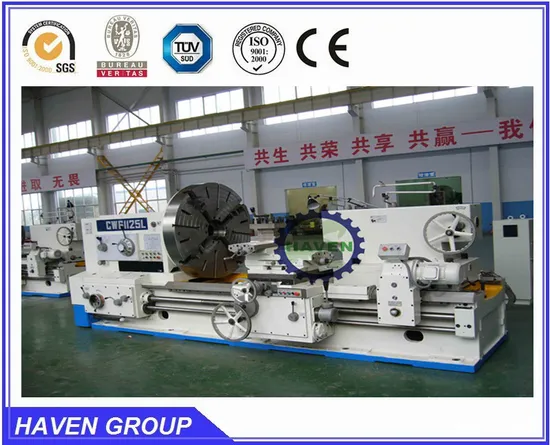

Manual Heavy-duty Horizontal Lathe CW61125L

Product Description

Manual Heavy-duty Horizontal Lathe CW61125L
Main feature:
1) These lathes can perform to turn endfaces ,cylindrical surfaces and internal holes of various parts as well as metric, inch ,module and pitch threads.
2) The top slides can be operated individually by power for cutting short taper surface also. It also can be turned automatically through the compound movement combining longitudinal feed with the top slide feed.
3) Moreover ,the machines may be used for drilling ,boring and trepanning. The are characteristics of power ,high spindle speed and high rigidity.
4) The various ferrous and non-ferrous metal parts may be turned through the heavy cutting by carbon alloy tools.
Standard accessories:
heavy chuck Φ 1250mm 1set;steady rest Φ120--480mm (for more than 2m) 1set ;steady rest Φ400--700mm
for more than 2m) 1set;follow rest Φ50--220mm (for more than 2m) 1set;Morse No.6 Center 1set;
center sleeve 1set;tools 1set;foundation screws 1set;
Main pecification:

SPECIFICATION	Model
	CW61125L	CW61140L	CW61160L	CW61180L	CW61190L
Max.swing diameter over bed	1250	1400	1600	1800	1900
Max.swing diameter over crossslide	880	1030	1230	1400	1500
Width of bed	1100mm
Max.length of workpiece	1000 -8000mm
Spindle nose	A15
Sindle bore diameter	130mm
Taper of spindle bore	Metric No.140#
Range of spindle speed	3.15-315r/min 21kinds
Longitudinal feeds range	0.1-12mm/r 56 kinds
Transversal feeds range	0.05-6mm/r 56kinds
Metrec thread range	1-120mm 44kinds
Inch thread range	3/8-28TPI 31kinds
Module thread range	0.5-60mm 45kinds
Pitch thread range	1-56TPI 25kinds
Tailstock sleeve taper	Metric 80#
Tailstock sleeve diameter	260mm
Tailstock sleeve travel	200mm
Main motor power	30kW
Rapid motor power	1.5kW
Coolant pump power	0.125kW

---
