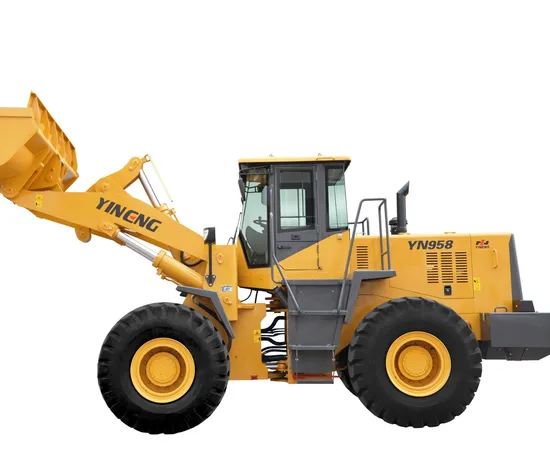

5 Ton Shovel for Constructon Work Yn958g

Product Description

3 m3, 5 ton front wheel loader, with ISO9001: 2000 and CE approved.
* Weichai Steyr diesel engine WD10G220E21 is adopted, large torque backup and strong power.
* Heavier chassis
* Single stage, 4 elements, twin turbo ZL50 torque converter and planetary gearbox from Hangzhou Advance Gearbox Group, compact structure and high reliability.
* Gear-shift with 2 forward and 1 reverse controlled by flexible shaft eases much labor.
* Strengthened axles owning large bearing capacities and high reliability.
* Twin pump merging hydraulic system makes lower consumption and excellent performance.
* The coaxes flow-amplified, hydraulic compensated steering makes operation easy and performance reliable.
* Both travel system and working hydraulic system are forced-cooled, improving the efficiency obviously.
* Air over hydraulic brake system; Eight caliper disc brakes.
* Air break control, expand hoof type parking brake and emergency brake.
* Working device with automatically leveling ability at high position.
* Bucket articulated points take sealed, lubricated, dust-proof layers, which owns
Good durability.
* Integral, luxury instrument board.
* New, luxury cabin
OPTIONALS:
(1) Dongfeng Cummins 6CTA8.3-C215
(2) A/C
(3) Joystick Control
(4) Quick Hitch
(5) Fork
(6) ROPS
(7) ZF TECH GEARBOX (WG180)
(8) ZF TECH GEARBOX (WG200)

Item	Specifications	Item	Specifications
Bucket capacity	3.0 m3	Rated power	162kW/2200rpm
Rated load	5000 kg	Tyre	23.5-25
Dumping height	3100 mm	Overall dimensions	7960*3070*3400mm
Max. breakout force	170 KN	Operating weight	17000kg
Max. drawing force	150 KN

---
