Sheet Metal CNC Hydraulic Press Brake Bending Machinery Multi CNC Controlled Axis Bending Machine

Product Description

Sheet Metal CNC Hydraulic Press Brake Bending Machinery Multi CNC controlled axis Bending Machine

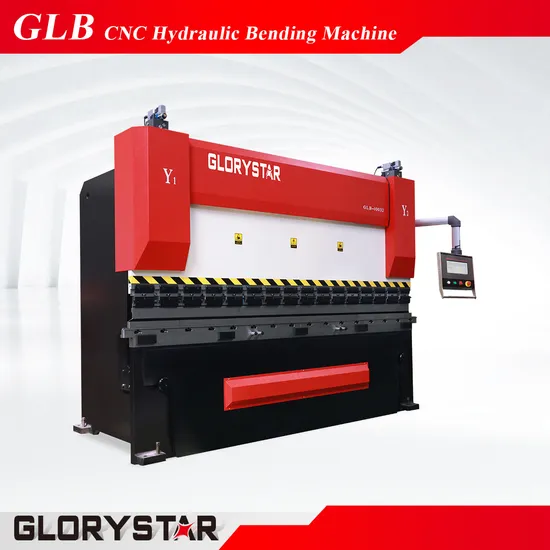

The GLB CNC Hydraulic Press Brake Machine produced by Glorystar Laser, with 55 to 240 tons available tonnage capacities, is a fine precision and high-efficiency plate bending processing equipment.
- It adopts international first-class CNC bending system, hydraulic power system engineering and precision screw guide rail and other ancillary products. - The processing parts are of excellent quality and reliable overall performance. - It has a complete mold selection system with complete mold types, and is equipped with complete bending special functions. - Automatic programming software with comprehensive automatic detection protection and self-diagnosis.
Features
1. High Precision Operation
Multi CNC controlled axis & mechanical compensation device;
2.Great Maintenance and High Quality
Whole EU streamlined design, heat treatment rack, high rigidity worktable;
3.Environmentally-friendly and Stable
Hybrid drive system reduce the use of hydraulic oil and electricity at the same time, effectively achieve energy saving and environmental protection;
4.User Friendly Design
Automatic angle measurement and adjustment through CNC system.
Parameter

Model		GLB 4015	GLB 8025	GLB 10032	GLB 16032	GLB 16041	GLB 20032	GLB 20041	GLB 25032	GLB 25041
Press Capacity(KN)		400	800	1000	1600	1600	2000	2000	2500	2500
Bending length (mm)		1500	2500	3200	3200	4100	3200	4100	3200	4100
Distance between uprights (mm)		1140	2010	2700	2700	3300	2700	3300	2700	3300
Max. opening height (mm)		420	420	470	470	470	500	500	500	500
Slider stroke length (mm)		160	160	200	200	200	240	240	240	240
Throat depth (mm)		320	340	390	390	390	380	380	380	380
Slider speed (mm/s)	Approach speed	180	180	180	160	160	120	120	100	100
	Running speed	10	10	10	9	9	8	8	8	8
	Retract speed	150	150	150	130	130	100	100	80	80
Main motor (KW)		4	7.5	7.5	11	11	15	15	18.5	18.5
Tank capacity (L)		170	270	350	380	480	380	480	380	480

Applicable Materials
Stainless steel plate, iron plate, copper plate, aluminum plate and so on.

---
