Fmworld Sugarcane Harvester-4gd-1 Full Rod Type

US$27,000.00-31,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
4GD-1
Application
Sugarcane
Power Source
Diesel
Harvest method
Cutting
Drive Type
Hydrostatic Drive
Transmission
Chain and Belt
Portable Harvester Type
Cutting
Certification
ISO9001:2008
Color
Red &Black
Condition
New
Application Field
Agriculture
Warranty
1 Year
Structure
Selfpropelled
Rated Power
75kw
Transport Package
Container
Trademark
WORLD
Origin
China
Production Capacity
10000pieces/Year

Product Description

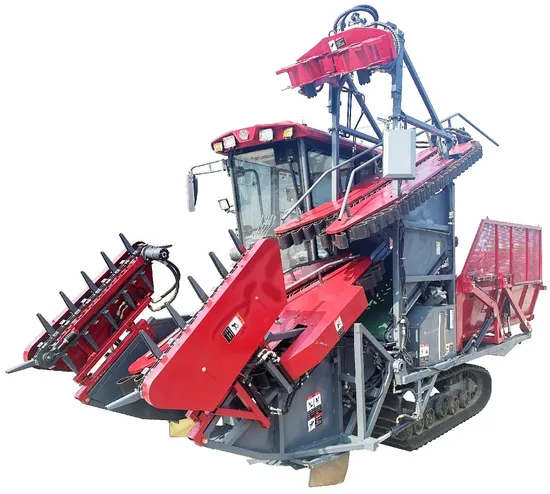

FMWORLD Sugarcane Harvester-4GD-1
Feature:
It equipped with a well-known domestic brand 90-horsepower engine with strong power;45CC large displacement stepless transmission, fast speed, flexible steering and good controllability;The self-made 85 reinforced gearbox uses original imported Japanese NSK bearings in key parts to extend the service life.The engine, continuously variable transmission, and gearbox are perfectly matched to meet the power and control needs in various complex operating environments. Parameters:
Model 4GD-1
Structural pattern Rubber track self-propelled
Rubber track 400*90*53
Harvest rows 1
Adaptive row spacing (m) ≥1.0
Engine model 4G33TC
Engine rated power(kw) 75
Engine rated RPM (r/min) 2600
Dimensions (mm) 6165*2010*3300
Transmission mode Hydraulic
Walking speed (km/h) 9
Working efficiency (hec./h) 0.21
Weight (kg) 3640
Ground clearance (mm) 330
Cabin type AC Cabin
Cutting device type Double disc cutter
Cutting device transmission mode Hydraulic
Clamping device type Conveyor chain
Clamping device transmission mode Hydraulic
Cane holding device type Finger plate
Driving mode of cane holding device Hydraulic
Cane collecting (unloading) device Collecting hopper
Rated stacking capacity (kg) 500
