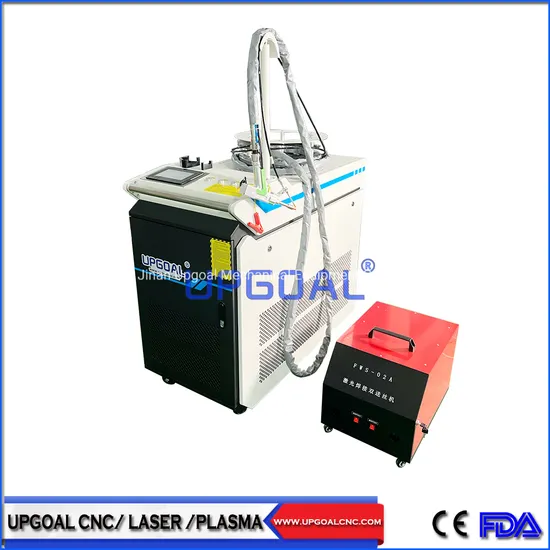

Dual Wire Feeding Fiber Laser Welder Welding Machine for Thick Iron Plate 2000W

Product Description

Dual Wire Feeding Fiber Laser Welder Welding Machine for Thick Iron Plate 2000W
Applications & Features
Handheld fiber laser welding machine, uses latest MAX brand 2000W fiber laser generator. It's equipped with China famous brand wobble weld head. The machines appear to laser equipment industries, fills in the blank of hand-held welding. It has the advantages of simple operation, beautiful welding beam and fast welding speed. Welding in thin aluminum,stainless-steel sheet, iron sheet, galvanized sheet and other metal materials can perfectly replace the traditional argon arc welding, electric welding and other processes.
Handheld laser welding machine can be widely used in cabinets, kitchens, staircases, elevators, racks, ovens, stainless steel doors and windows guardrail, distribution boxes, stainless steel home and other industries complex and irregular welding process.
1.The energy density is high, the heat input is low, the amount of thermal deformation is small, and the melting zone and the heat-affected zone are narrow and deep.
2.High cooling rate, which can weld fine weld structure and good joint performance.
3.Compared with contact welding, laser welding eliminates the need for electrodes, reducing daily maintenance costs and greatly increasing work efficiency.
4.The weld seam is thin, the penetration depth is large, the taper is small, the precision is high, the appearance is smooth, flat and beautiful.
5.No consumables, small size, flexible processing, low operating and maintenance costs.
6.The laser is transmitted through fiber optics and can be used in conjunction with a pipeline or robot.
7. Fast welding speed, 2~10 times faster than traditional welding.
8. Easy operating need no training.
9. Safer, more environmentally friendly.

Main Parts
Fiber Laser source: Adopting famous MAX 2000W the photoelectric conversion rate is greatly improved, laser power is enhanced, has better welding effect, can according to the needs of customers with different configurations to meet customer needs.
Portable single wobble handheld welding head (RelFar), supports Dual & single wire feeding, Light shape, economic deign, instead of fixed weling head, it offers so much welding convenience for welding big, or heavy or complex structure articles.
With dual Wire feeder( can choose dual or single wire feeding) , in order to make the welding joint full and level and to meet the required mechanical strength requirements. With dual wire feeding, can realize 8mm wobble width, and stacking welding, suitable more thick metal parts.
Special laser welding system(RelFar) : Welding software is easily operated as the mode of human-computer interface. Strong software function can be realized by simple touch screen.It has editable and memory functions. and welding width of the processing parts, and solve the disadvantage of minor laser welding spot, and provide better welding forming.
Industrial Water chiller( Teyu S&A RMFL-2000): One of the biggest convenience of the machine is the inside water chiller. It saves a lot of the machine's dimension.It is constant temperature industrial type.
Connect with the Argon gas or Nitrogen gas before welding
Technical Parameters

Laser Power	2000W/3000W (MAX/RAYCUS brand)
Laser Wave Length	1070 NM±20nm
Fiber Length	standard10M Maximum 15M
Laser Pulse Frequency	1-20HZ
Pulse Width	0.1-20ms
Adjusted spot range	0.1-3mm
Minimum Welding pool	0.1mm
Collimating focal length	50mm
Focus length	150mm
Focus adjustment range	-10mm~+10mm
Spot adjustment range	0~5mm
Gas source	Argon or Nitrogen,≤1Mpa
Working mode	Continuous or modulate
Welding head	Portable single wobble handheld welding head(RelFar)
Welding system	Touch screen control panel(RelFar )
Beam quality	M2<1.2
Line width	<5nm
Straight modulate	0-5KHZ
Welding speed range	0~120 mm/s
Cooling system	Water cooling, industrial water chiller,Teyu S& A brand
Welding thickness recommendations	0.5-4mm
Welding gap requirements	≤0.5mm
Working environment temperature	15~35 ºC
Humidity range of working environment	< 70%No condensation
Working Voltage	AC380V, 50/60Hz, three phases or AC220V, 50/60Hz, single phase

Reference Welding Cleaning Sample Photos
Accessories & packing
Working videos:
https://youtu.be/X1Vg8AaXGDk

For more information, just feel free to contact us!
Jinan Upgoal Mechanical Equipment Co.,Ltd
