Sophisticated Technology Mattress Sewing Machine Packing Machine Chain Stitch Quilting Machine for Mattress

Product Description

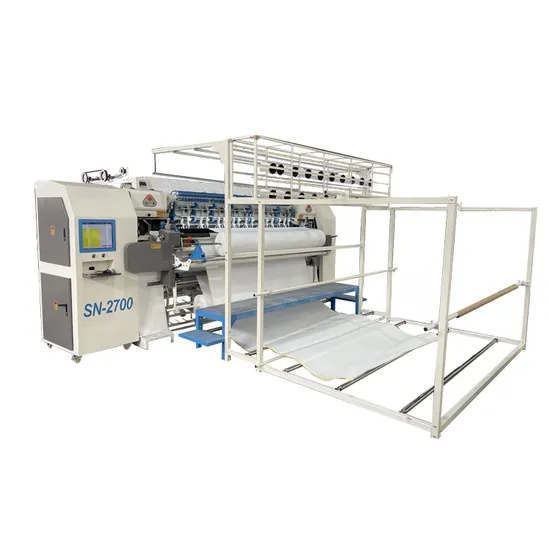

Computer Multi Head Chain Stitch Quilting Machine
SN-2700 SN-3200 SN3700
1.Computer Chain Stitch Multi Needle Quilting Machine For Mattress
2.Adopting chain stitch quilting mechanism, avoiding frequently replacing bottom thread, and making the quilting stitches much firmer.
3.Needle bar and press plate are controlled by a double- swinging device without cam avoiding lubrication and dirtying of material
4.Automatic stop motion control in case the top thread or the bottom thread breaks,automatic needle-lifting and CNC speed adjustment
5.CNC precision control system, no need to adjust the press plate's position when the thickness of quilting material varies
6.Strong functions of pattern-combining and Tack & Jump quilting to enable you to quilt different patterns in same row of the mattresses
7.Fault detection function for ease of determining the running state of the machine at any given time
8.Easy preparation of CAD drawings extremely precise
9.Multi span and independent patterns(360°and 180°patterns are available)
10.Language can be customized, All kinds of language Warranty
1.All parts are guaranteed one year for non-human-made damage
2.After one year, all parts was provide without profit
3.Before buying, our businessman online 12 hours every working day to answer your questions
4.In production,production pictures and videos are available any time
5.After buying,our engineer online 10 hours every working day to help you use machine correctly
6.We provide details machine installation & user's guide and maintenance manual

Model	SN-2700	SN-3200	SN-3700
Dimension(L×WxH)	Dimension(L×WxH)
Quilting width	2400mm
Space between needle rows	50.8,76.2,127(5") 76.2,76.2,152.4(6")
Space between needles	25.4
X-axis movement displacement	308.4
Max Thickness of quilting	60MM	80MM	80MM
Stitch length	3-8
Speed of operation	60-230	60-300	680-330
Model of needle	24/18023/160 22/14021/130
Quilting speed	1000RPM	1200RPM	1200RPM
Total power	7KW	8KW	9KW
Voltage	220V60HZ 380V50HZ
Gross weight	4000KG	5000KG	5500KG

FAQ
Q1: Warranty,Quality and ServiceA:We provide one year warranty,within one year,If machine damaged,we provide parts free;And we provide online guidance within 12 hours,lifetime service.Q2: Experience,Professional and EngineerA:We are a home textile manufacturer with almost 20 years experience,Our engineer online eight hours every day,we will give best guide before buying and after buyingQ3: Trust and SafetyA:We are a family business group,all of us working in this market and can only working in this field,we must do our best becausethere is no way of escape,no matter when you have troubles,you can find us always.Q4: Advantage and Why choose usA:We have are rich experience, professional team, never absent after-sales servicewe helped many many customers in the world,we are growing up together with all of our customers.

---
