Multi Rip Saw Plywood MDF Panel Multiple Blades Rip Saw Machine

Product Description

Product Description
Multiple Blade Rip Saw

Model	WS1300	WS1300A
Max Cutting Width	1250MM	1250MM
Shaft Speed	2500RPM	2500RPM
Sawing Height	5-30MM	5-50MM
Saw Blade Diameter	205*74MM	205*74MM
Min Cutting Length	580MM	580MM
Saw Blade Quantity	10(Adjustable)	10(Adjustable)
Motor Power	22KW	37KW
Feeding Motor	1.5KW VFD	2.2KW VFD
Feeding Roller Quantity	12	12

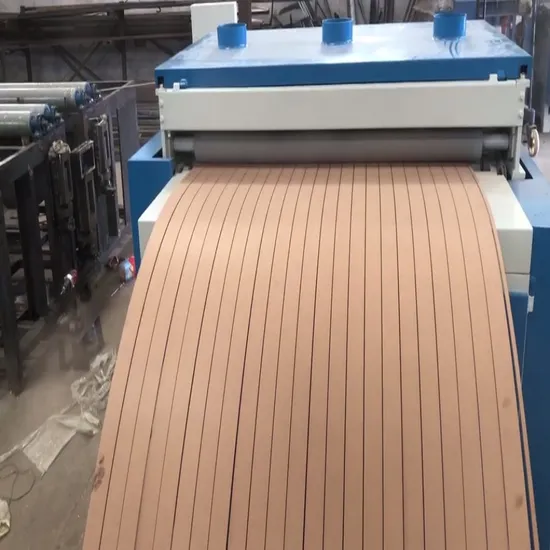

Detailed Photos
Related Machines
Multi Blade Rip Saw Wood Log Cutting Machine

Double Arbor Multiple Blades Rip Saw Log Cutting Circular Saw Machine

Model	150	200	240	285	330	340	400	480
Cut Diameter MM	20-150	60-200	80-240	130-285	150-330	150-340	180-400	250-480
Saw Blade Diameter MM	255	305	355	405	455	480	550	650
Motor Power KW	18.5*2	22*2	30*2	30/37	37*2	45/55	55*2	75*2
Weight KG	1570	1720	2200	2350	2550	2650	3500	4100

Timber cutting Multi Ripsaw

Model	60	80	100	120	150	100H	120H	160H	200H	250H	270H	300H
Cut Height MM	0-60	30-80	40-100	50-120	60-150	40-100	50-120	70-160	90-200	110-250	130-270	150-290
Cut Width MM	250-300	250-300	250-300	250-300	250-300	350-400	350-400	350-400	350-400	350-400	350-400	350-400
Saw Diameter MM	150	180	210	230	255	230	255	280	355	380	405	455
Motor Power KW	18.5/22	22*2	22*2	22/30	22/30	30*2	37*2	37/45	37/45	45*2	45/55	55*2
Weight KG	1190	1260	1420	1560	1620	2330	2450	2480	2550	2580	2620	2700

Slab Cutting Saw

Model	200100	250100	280150	150150	250150	300150
Max Cutting Height MM	40-100	40-100	40-150	100-150	100-150	100-150
Max Cutting Width MM	200	250	280	150	250	300
Saw Blade Diameter MM	305	355	405	305	405	455
Motor Power KW	7.5*2	7.5*2	11*2	15*2	15*2	15*2
Weight KG	480	600	750	1350	1380	1420

Single Arbor Multi Ripsaw With Laser Positioning

Model	50030	50050	80050
Max Sawing Wood Thickness MM	30	50	50
Max Sawing Wood Width MM	500	500	800
Saw Blade Diameter MM	160	210	210
Feeding Model	Belt	Belt	Belt
Motor Power KW	7.5	11	15
Length*Width*Height MM	1320*850*1350	1350*850*1350	1350*950*1350
Weight KG	400	510	730

Company Profile
Specialize in research & development, production, sales of sawmills and the relevant fittings SINCE 1988
We have serves 11,000 enterprises and our products have been exported to over 60 countries in the world.
Our Circular sawmill including:
Double Arbor Log Cutting Multi Ripsaw
Double Arbor Timber Cutting Multi Ripsaw
Single Arbor Timber Cutting Multi Ripsaw
1300/1600mm panel Plywood/Finger Joint Boards cutting multiple rip saw
Slab Cutting Horizontal Multi Ripsaw
Trimmer (2/3/4/5 Heads)
Circular Sawmill With Wood Carriage (1/2/4 Blades)
Twin Blades Edger
Double Blades Angle Sawmill
Swing Blade Sawmill
Industrial Table Sawmill
Cross Cutting Sawmill(CNC,High Speed,Optimizing)
Sawmill & Kilns & Pallet & Biomass & Forestry & Recycling
Sincerely welcome worldwide distributors to join us!

---
