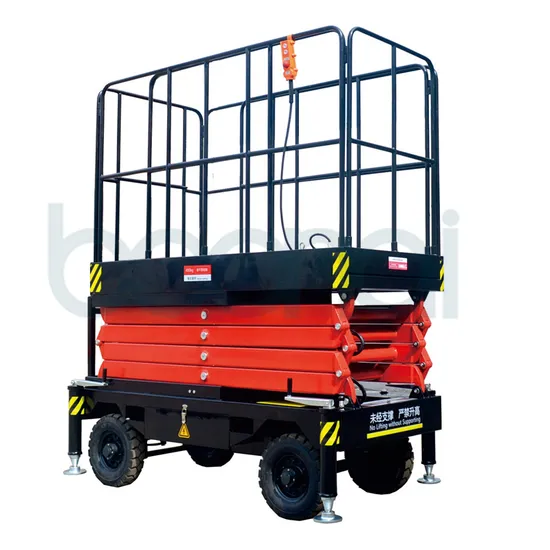

Manganese Steel Mobile Hydraulic Scissor Lift for Aerial Work

Product Description

Company introduction: Boonai Lift Equipment Co. Ltd as a modern manufacturing enterprise is specialized in aerial work platform, providing package service for design, production, sales and after-sales. There is an experienced team that takes care of every process for design, production and quality control and dedicated to provents with excellent work. With business philosophy of "Quality First, Client Oriented", we are striving for building a reputable brand of Boonai by following the steps of the giants for the innovation of products and the improvement of process and pursuing the perfection on every detail. Main products are as follows: masts aerial work platform, scissor lift, fixed lift table, car lift and material picker as well as electrical aerial work platform, with a wide application for the fields as machinery, military, aviation and logistics etc.
Product introduction:
Manganese Steel Scissor Lift Table / Mobile Type / Heavy Load/Two Operators is suitable to be utilized in construction
area,maintenance for large warehouse, maintenance for street lamp and so on.
The Scissor Lift table from Suzhou Wangting has precise design that ensures stable lifting and lowering.
Manganese Steel Scissor Lift Table / mobile type / heavy load/two operators:
1. Made of wide section manganese steel,heavy loading
2. Scissor mechanism
3. Large platform
4. Upper / lower control mode
5. Emergency lowering device
6. Double contactors and double limit switches
7. Extension platform is optional
8. Self-propelled is optional
9. Emergency stop button
10.Leveling device with supporting screws

Model	SJY0.45-5	SJY0.45-7.5	SJY0.45-9	SJY0.45-11	SJY0.45-12	SJY0.45-14	SJY0.3-16
Rated load (kg)	450	450	450	450	450	450	300
Max height of platform (m)	6	7.5	9	11	12	14	16
Min platform height (m)	0.98	1.25	1.5	1.6	1.7	1.8	1.98
Size of platform (L*W)(m)	1.8*0.9	1.8*1.0	1.8*1.0	2.1*1.15	2.45*1.35	2.45*1.35	2.8*1.5
Lifting time (s)	54	72	83	88	90	120	145
Voltage	380V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz
Motor power	1.5KW	1.5KW	2.2KW	3KW	3KW	4KW	5KW
Overall size (L*W*H) (m)	2.0*1.08*0.98	2.0*1.2*1.25	2.0*1.2*1.5	2.25*1.35*1.6	2.6*1.55*1.6	2.6*1.55*1.8	2.95*1.75*2.18
Extended outrigger (m)	0.6	0.7	0.7	0.7	0.7	0.8	0.85
Overall weight (kg)	650	1100	1260	1380	1850	2500	2700

---
