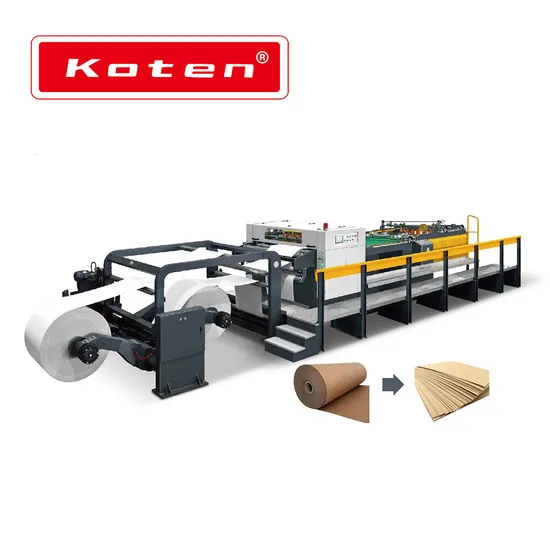

Automatic Paper Roll to Sheet Paper Sheeter Cross Cutter Machine

Product Description

Process.
Finished Sample.
Main features:
This machine is suitable for cutting the large coil packaging material, such as the paper, paper plastic complex material and color printing complex material, etc. This machine is widely used for application in the industries of paper processing and printing packaging.
Application range:
The machine is suitable for cutting in longitudinal direction and cross direction the colied materials like paper, trademarks, cigarette labels, wall calendars, spirits boxes, playing cards, paper-plastic compound materials, etc.
Function: Transverse cutting with flat blade, automatic feeding, automatic stowing and photoelectric tracking.
Main Specifications.

Model	GDQ-1400	GDQ-1700	GDQ-1900
Suitable Paper Thickness	60-500gsm	60-500gsm	60-500gsm
Max.Diameter Of Mother Roll	1800mm Max	1800mm Max	1800mm Max
Max.Height Of Stacker	1400mm	1700mm	1900mm
Cutting Length	400-1650mm	400-1650mm	400-1650mm
Cutting Accuracy	±0.3mm	±0.3mm	±0.3mm
Max.Cutting Speed	300cuts/min	300cuts/min	300cuts/min
Max.Running Speed	300m/min	300m/min	300m/min
Atmospheric Pressure	0.8MPA	0.8MPA	0.8MPA
Power Supply	AC380V/220Vx50HZ	AC380V/220Vx50HZ	AC380V/220Vx50HZ
Total Weight	12000kg	13000kg	15000kg
Dimensions	9x3.9x2.35m	9x4.2x2.35m	9x4.5x2.35m
Total Power	23KW	25KW	28KW

---
